Turbo Levo 4, Where Super Meets Natural
SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you’re SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

• E-System – Specialized 3.1 Motor w/ 810 Watts & 105Nm, 840Wh Battery, up to 5.33 hour range
• Frame – Premium M5 Alloy, Geo Adj & SWAT Storage
• Suspension – Front: 160mm Marzocchi Bomber Z1
  Rear: 150mm Marzocchi Bomber Inline (shock subject to upgrade)
• Drivetrain – SRAM 70 Eagle T-Type Mechanical
• Wheels – Specialized Alloy Rims / Bear Pawls hubs

Technical Specifications
E-Bike:

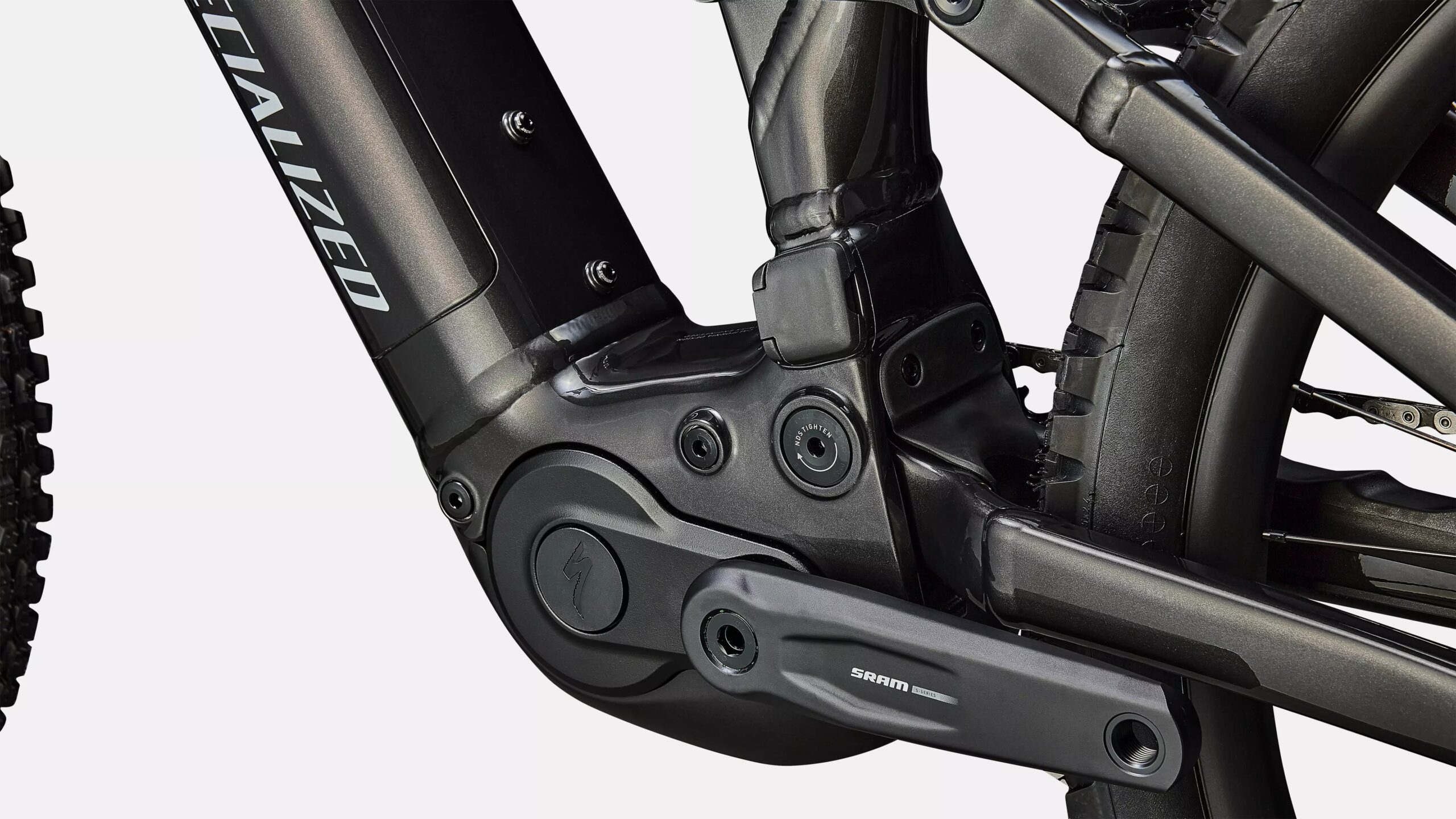

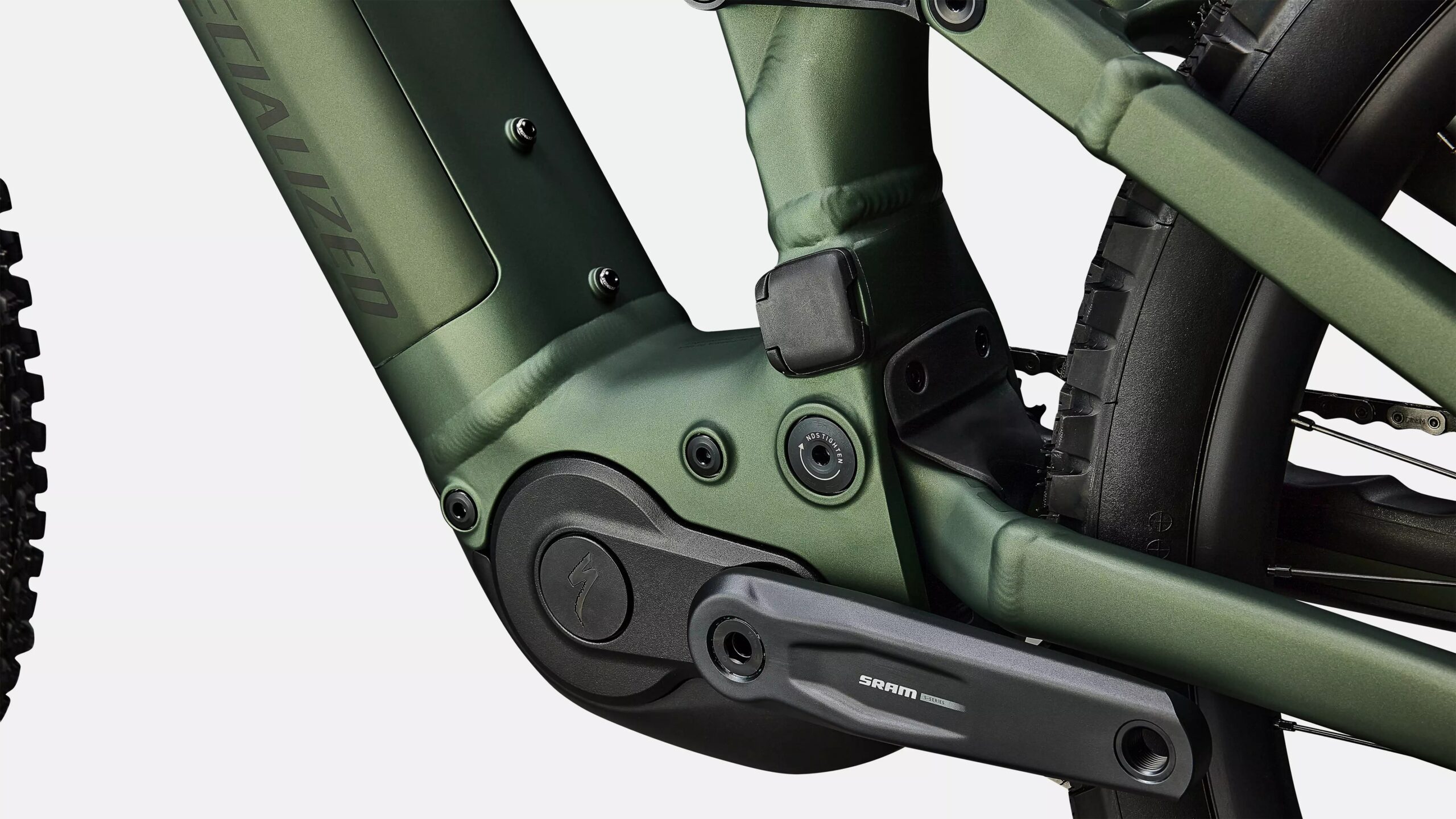

Motor – Specialized 3.1 Motor, 105Nm torque, 810W power

Battery – 840Wh battery

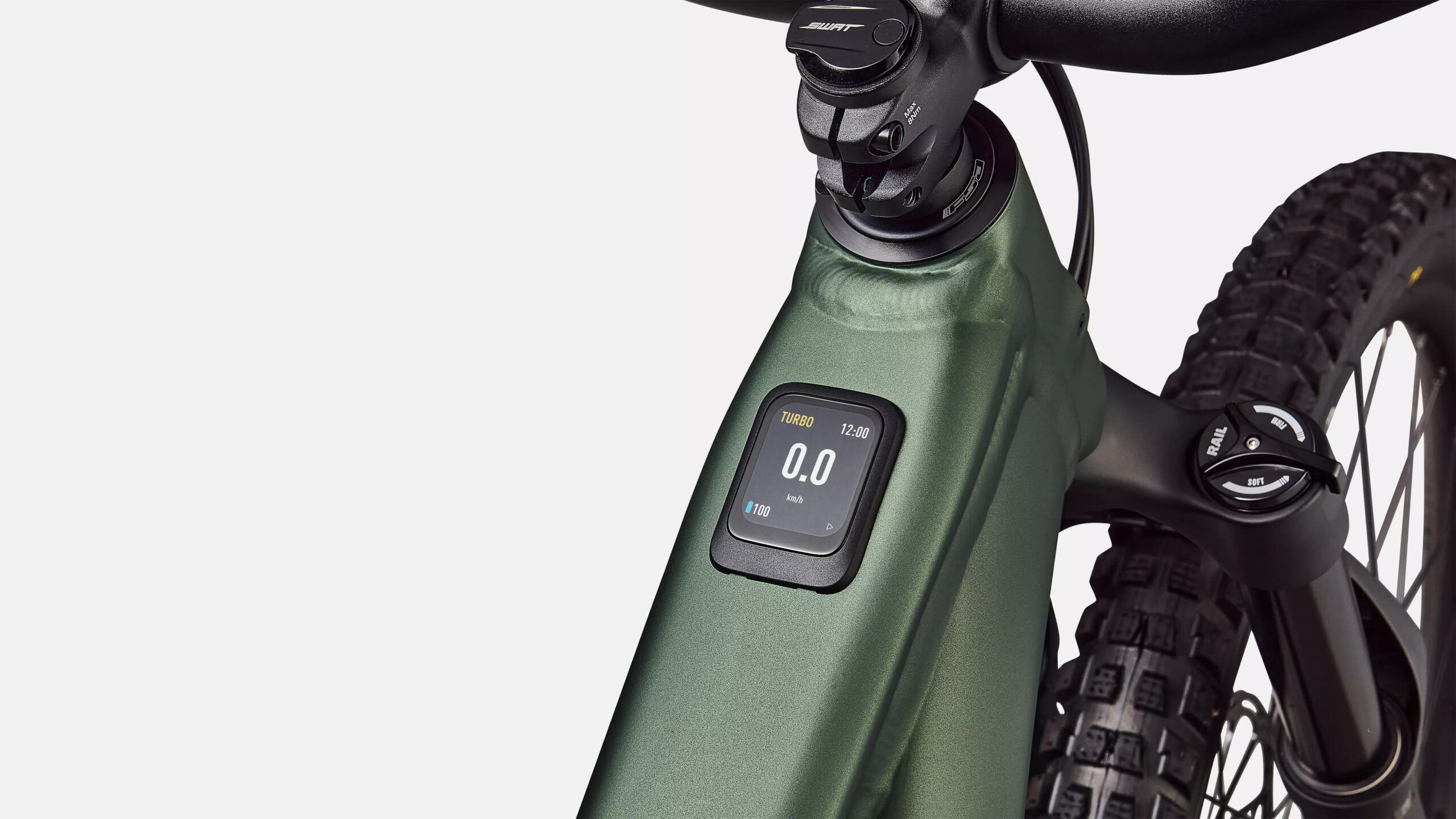

UI/Remote – All New MasterMind T3 Display System, 2.2″ high resolution color screen, fully customizeable with Specialized App

Charger – Specialized 4amp charger

Frameset:
Frame – All new Levo 4 M5 Alloy frame, 150mm travel,, adjustable chainstay, adjustable head tube angle, adjustable bottom bracket, internal SWAT storage 148mm spacing, 29″ front wheel/27.5″ rear wheel, fork travel up to 180mm

Seat Binder – Alloy, 38.6mm

Suspension:

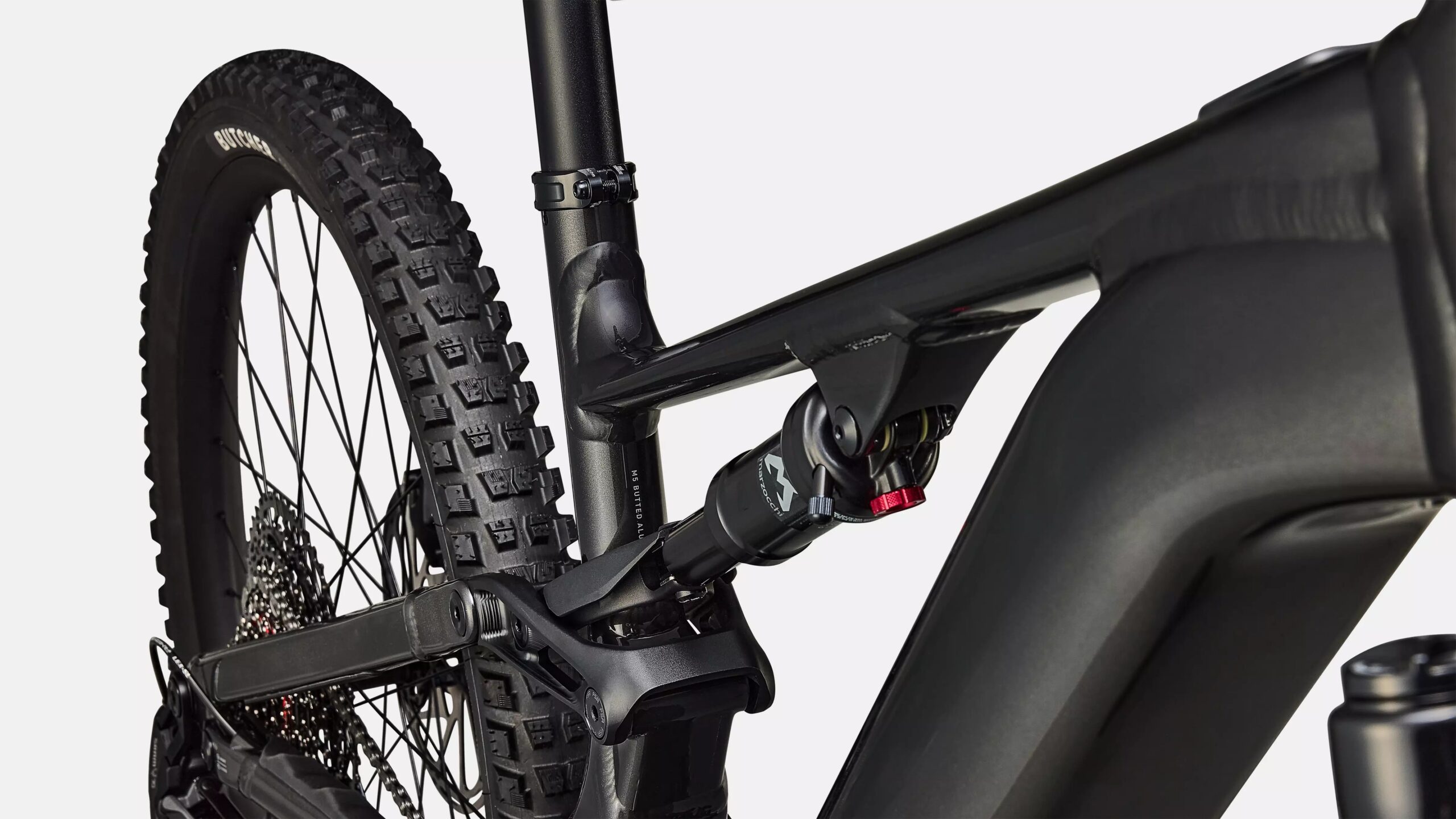

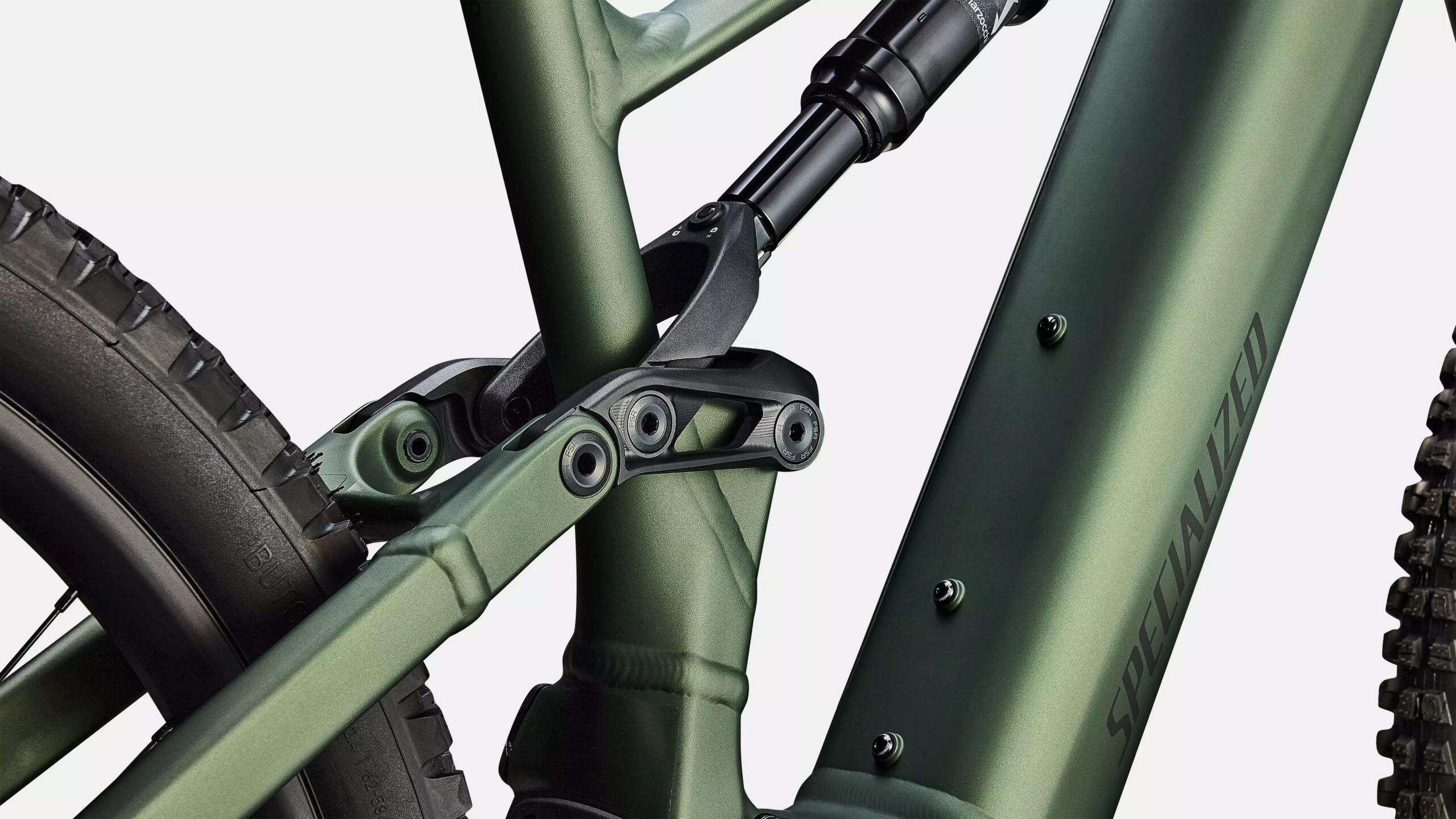

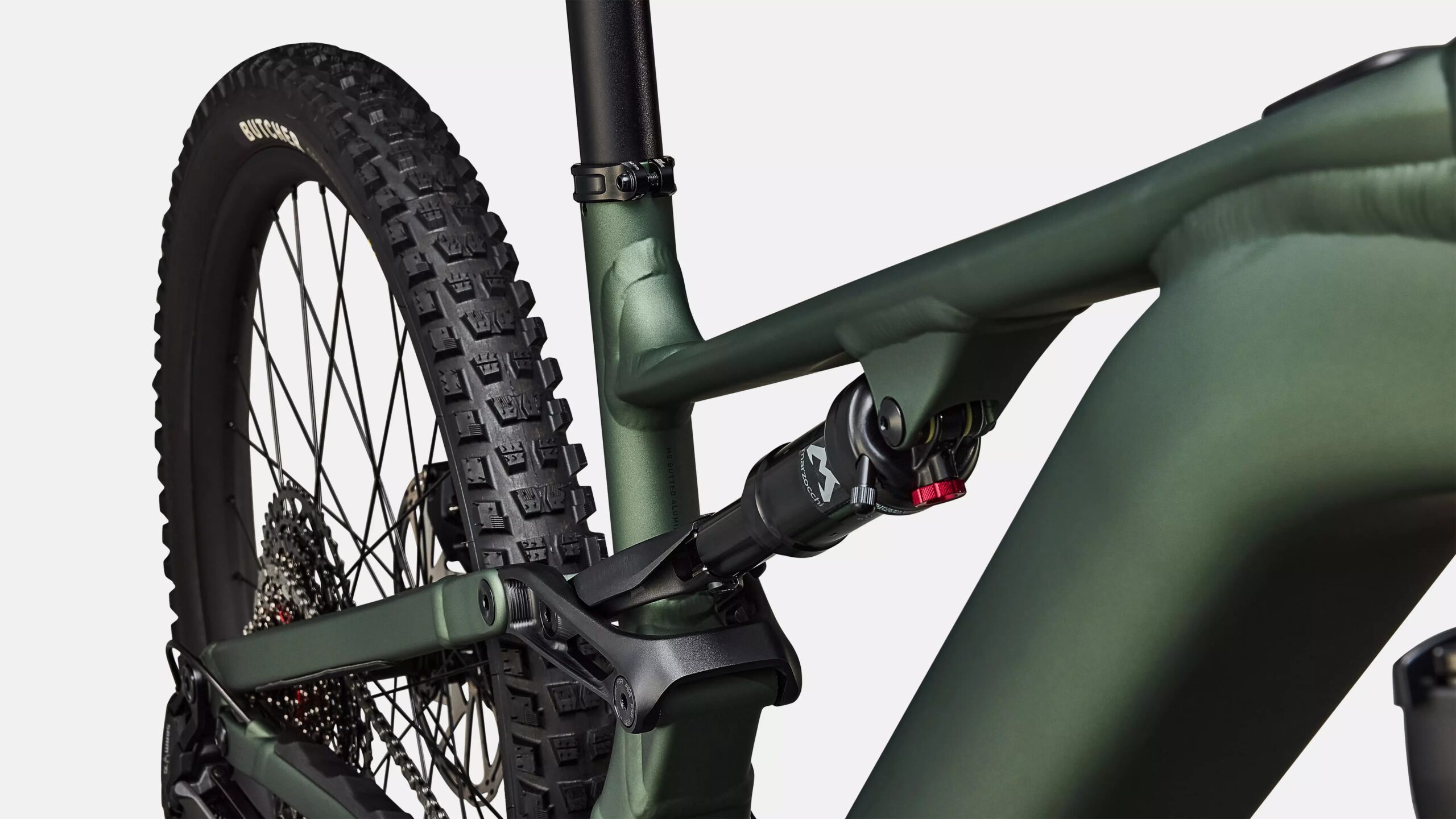

Rear Shock – *Marzocchi Bomber Inline, EVOL LV air sleeve, rebound adjust, 210x55mm

Fork – Marzocchi Bomber Z1, 29″, S2-S6: 160mm, S1: 150mm, sweep adjust compression

Brakes:
Front Brake – SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 220mm Centerline rotor

Rear Brake – SRAM DB8 Stealth, 4-piston caliper, hydraulic disc, 200mm Centerline rotor

Drivetrain:
Shift Levers – SRAM 70 trigger, 12-speed, single click

Rear Derailleur – SRAM Eagle 70 Transmission, 12-speed

Cassette – XS-1270, 12-speed, 10-52t

Chain – SRAM Eagle 70 T-Type Flattop Chain

Crankset – SRAM S1000 Crankset, ISIS Interface, Integrated Guard, 55mm Chainline, 155mm

Chainrings – SRAM 34t T-Type chainring, 104 BCD, steel

Wheels & Tires:
Rims – Specialized, hookless alloy, 30mm inner width, tubeless ready

Front Hub – Alloy, sealed cartridge bearings, 15x110mm thru-axle, 28h

Rear Hub – Alloy, sealed cartridge bearings, 12x148mm thru-axle, 32h

Spokes – DT Swiss Elemental

Front Tire – Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29×2.4″

Rear Tire – Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5×2.4″

Inner Tubes – Standard, Presta Valve

Cockpit:
Stem – Alloy Trail Stem, 35mm bar bore

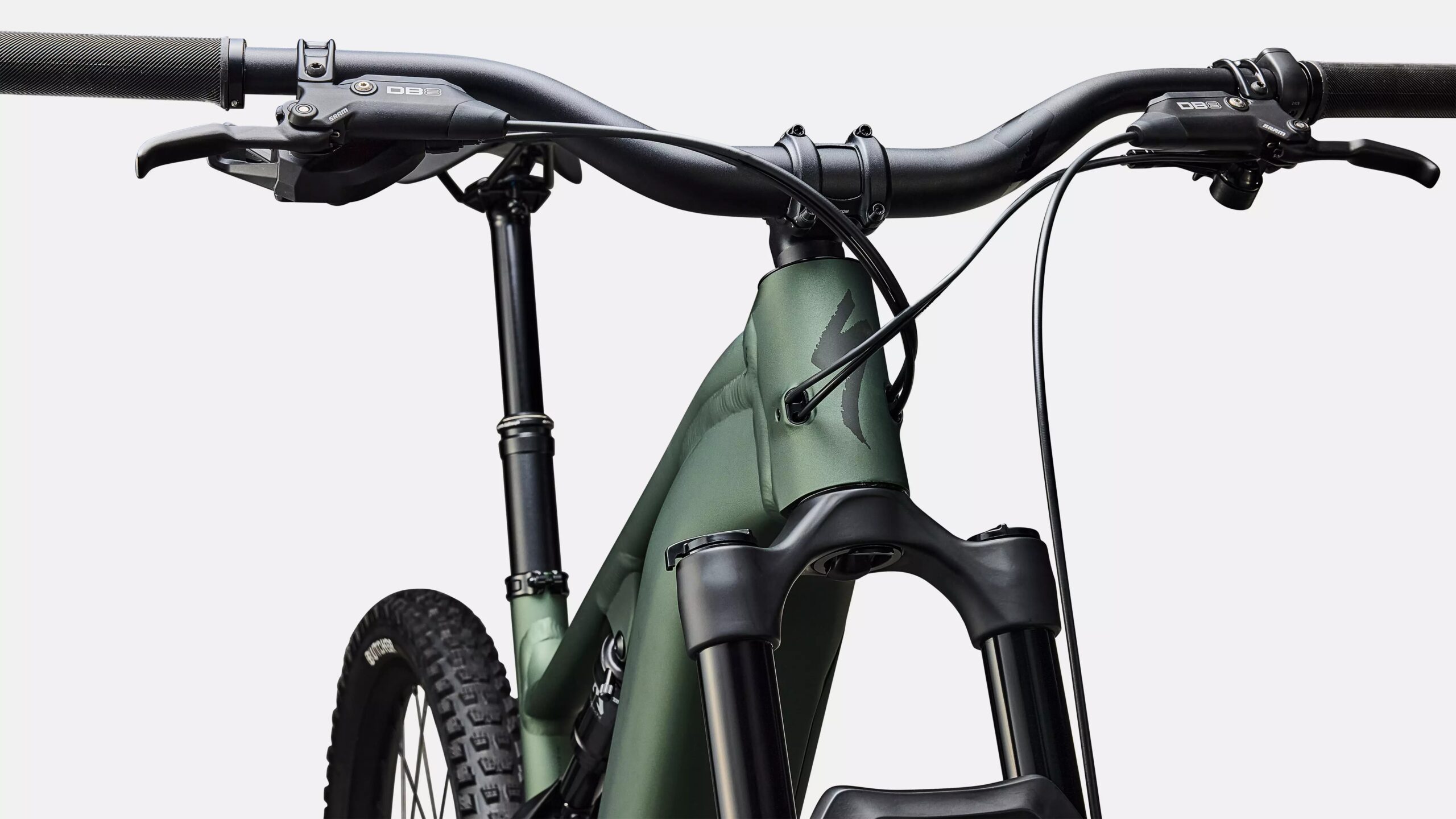

Handlebars – Specialized, 6061 alloy, 6-degree upsweep, 8-degree backsweep, S1-S2: 780mm width/30mm rise, S3-S6 800mm width/50mm rise

Grips – Specialized Trail Grips

Saddle – Body Geometry Bridge Saddle, steel rails

SeatPost – TranzX dropper, 34.9mm, S1: 100mm, S2: 125mm, S3: 150mm. S4-S5: 170mm, S6: 200mm

Accessories:
SWAT – SWAT Internal downtube storage

Weight:
Weight – 26.08 kg (57 lb, 7.8 oz)

Weight Size – S4

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
