Where Super Meets Natural

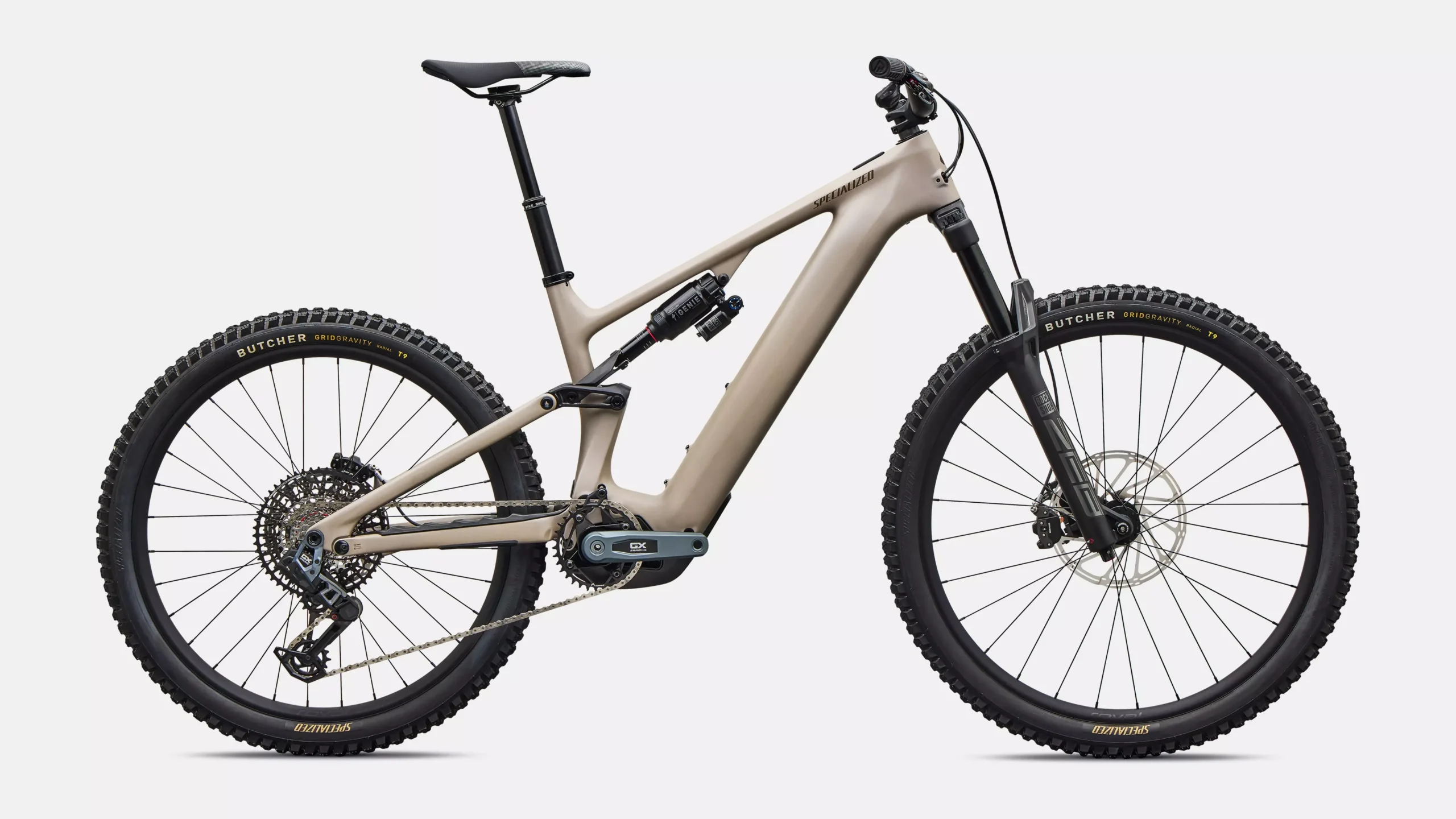

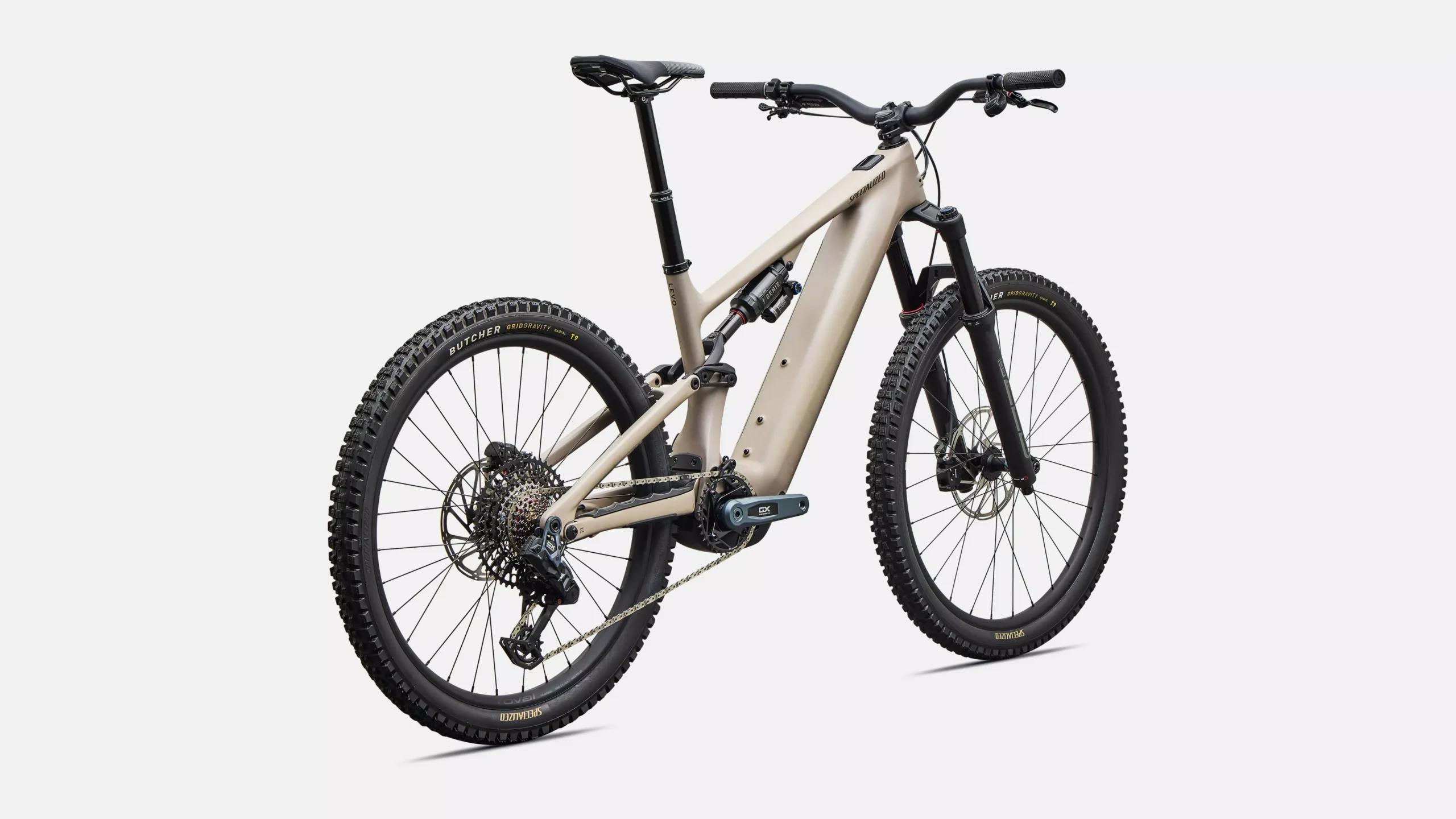

Turbo Levo 4 Expert

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you’re SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

• E-System – Specialized 3.1 Motor w/ 810 watts peak power & 105 Nm torque, 840 Wh Battery, up to 5 hour range w/ optional range extender
• Frame – FACT 11m Carbon, Geo Adj & SWAT E-MTB Storage
• Suspension – Front: 160mm RockShox ZEB Select+ fork
  Rear: 150mm RockShox Super Deluxe Select+ shock w/ GENIE
• Drivetrain – SRAM GX Eagle AXS Transmission
• Wheels – Roval Traverse Alloy wheels w/ Butcher Grid Gravity Radial 2.4″ tires

Technical Specifications
E-Bike:

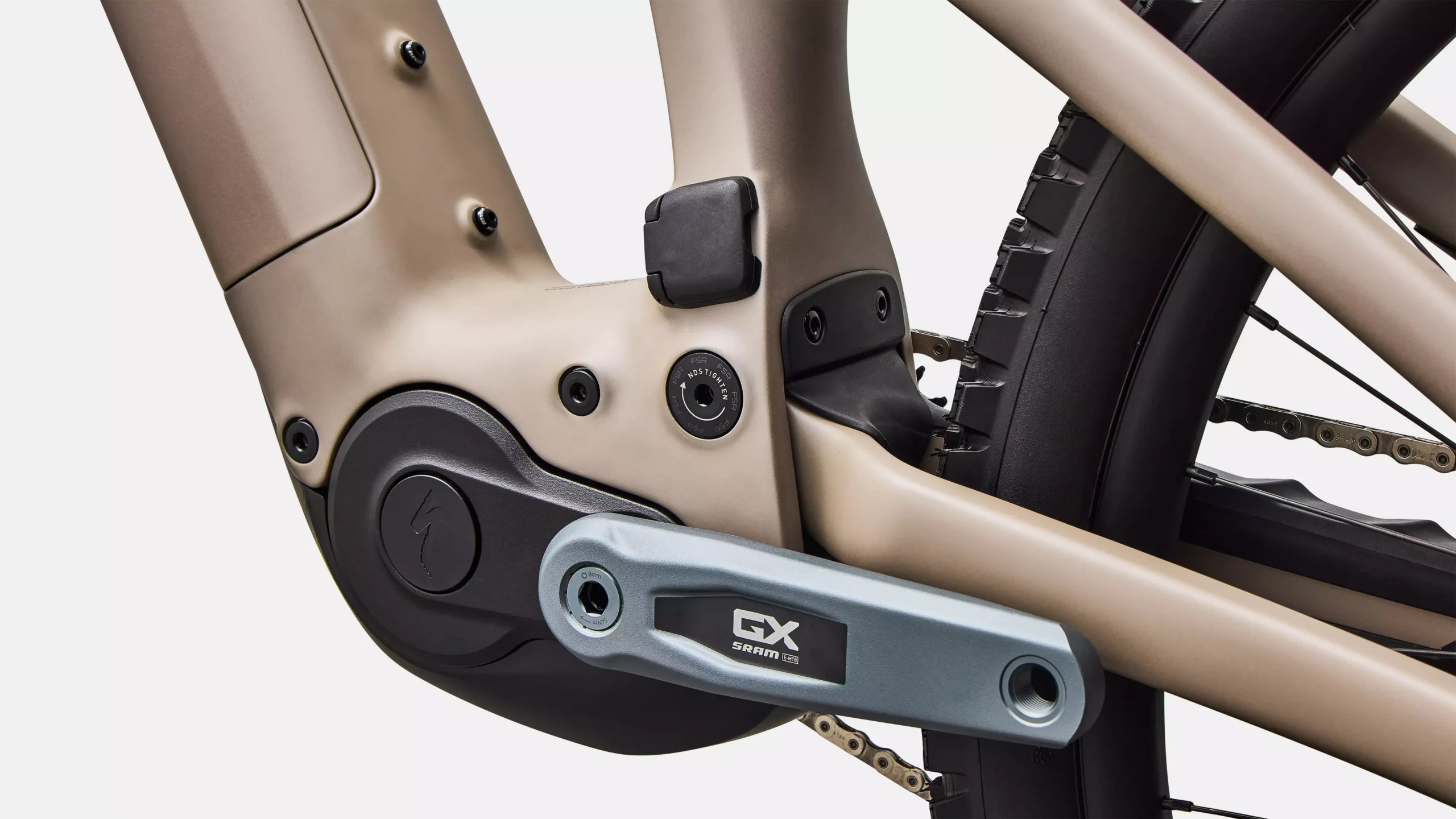

Motor – Specialized 3.1 Motor, 105Nm torque, 810W power

Battery – Specialized Turbo X2 840Wh integrated battery pack

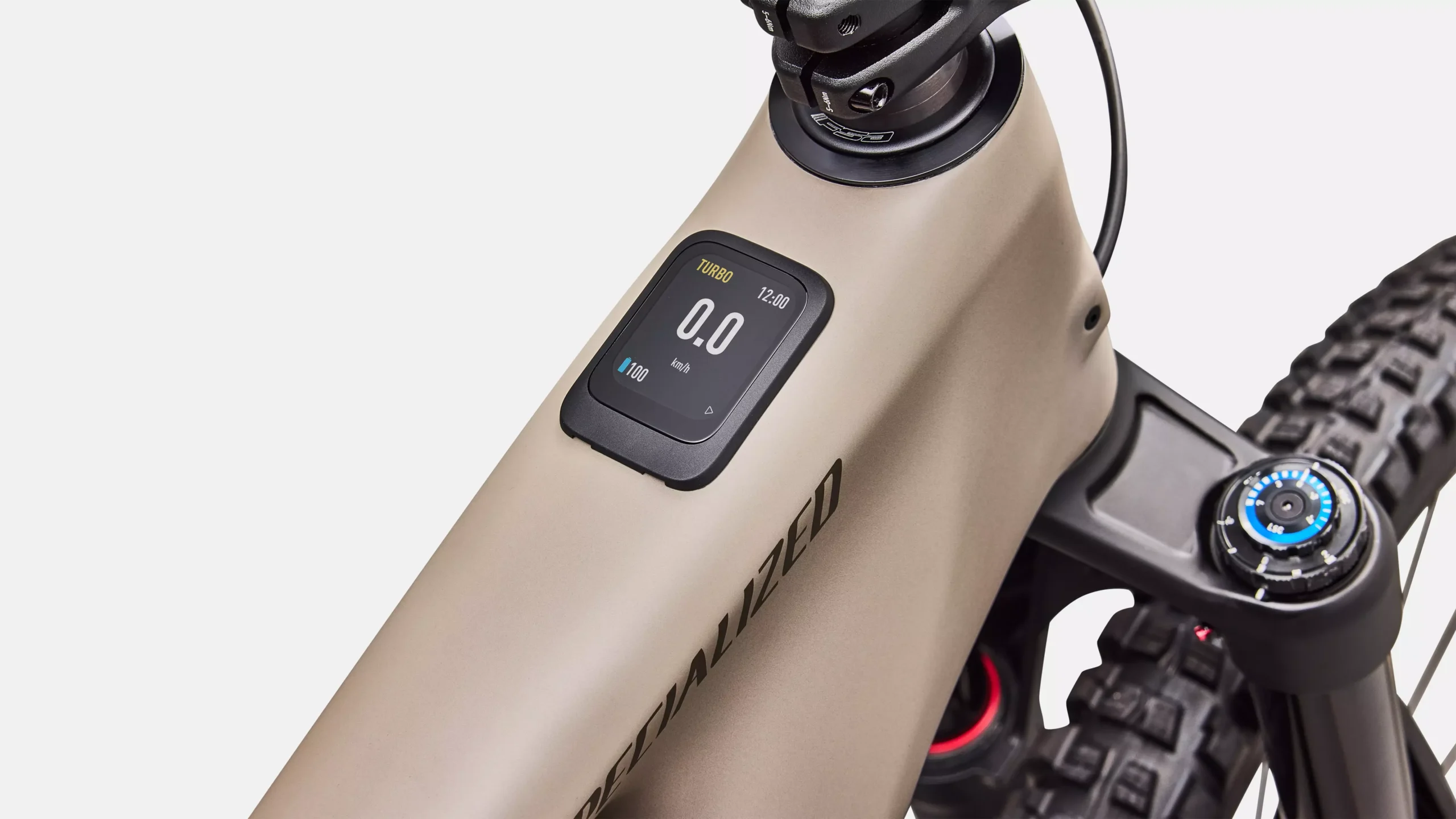

UI/Remote – Mastermind TCU, 2.2″ high resolution screen, fully customizeable with Specialized app, works with Apple Find My

Charger – Specialized 4amp charger

Frameset:
Frame – Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length

Seat Binder – Alloy, 38.6mm

Suspension:

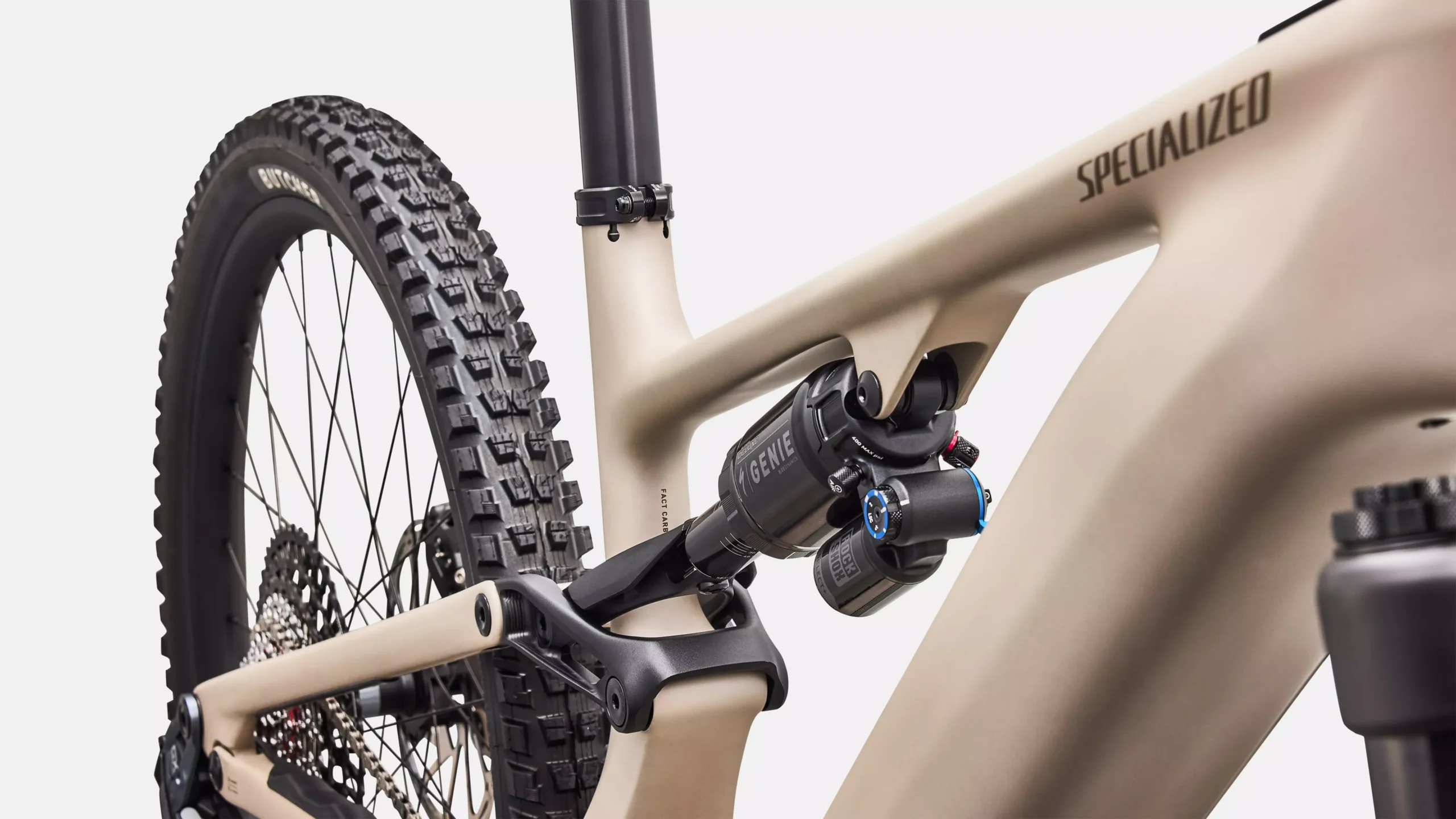

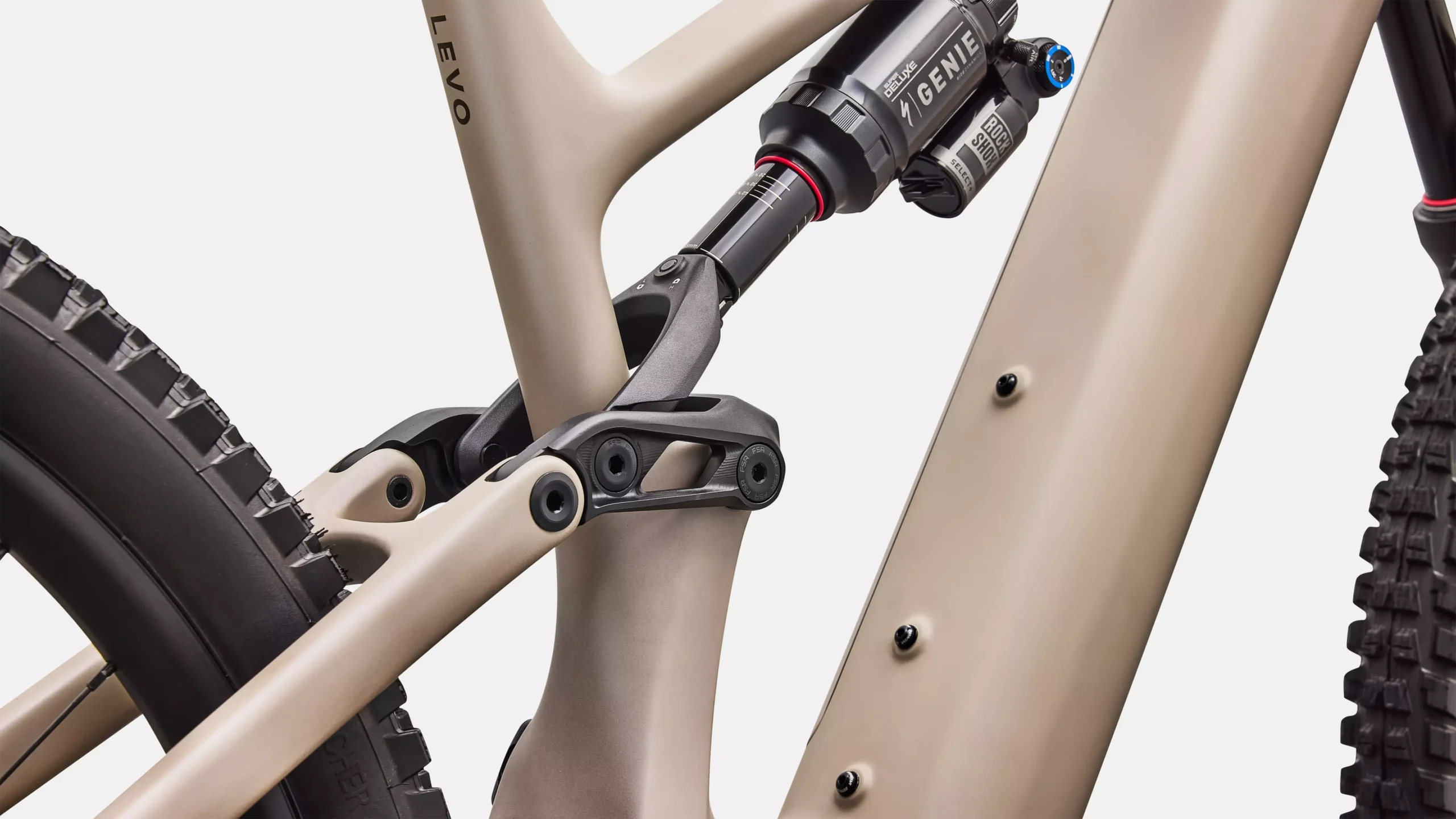

Rear Shock – All New Rockshox Super Deluxe Select + GENIE, RCT damper with (LSC) Low Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm

Fork – Rockshox Zeb Select+, high/low speed compression adjust, rebound adjust, 15x110mm axle, 44mm offset

Brakes:
Front Brake – SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor

Rear Brake – SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor

Drivetrain:
Shift Levers – SRAM AXS Pod Controller w/discrete clamp

Rear Derailleur – SRAM GX Eagle AXS Transmission

Cassette – SRAM XG-1275 Transmission 12-Speed 10-52t

Chain – SRAM GX Eagle Transmission 12-Speed Flattop Chain

Crankset – SRAM GX Alloy crank, ISIS interface, 155mm length

Chainrings – SRAM 34t T-Type chainring, 104 BCD, steel

Wheels & Tires:
Front Tire – Butcher GRID Gravity Radial T9 TLR Enduro Tire 29×2.4

Front Wheel – Roval Traverse Alloy 29″, DT Swiss 370, 15x110mm, 28h

Rear Tire – Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5×2.4

Rear Wheel – Roval Traverse Alloy 27.5″, DT Swiss 370 XD freehub body, 12x148mm, 32h

Inner Tubes – Standard, Presta Valve

Cockpit:
Stem – Specialized, 35mm Clamp, 35mm Reach

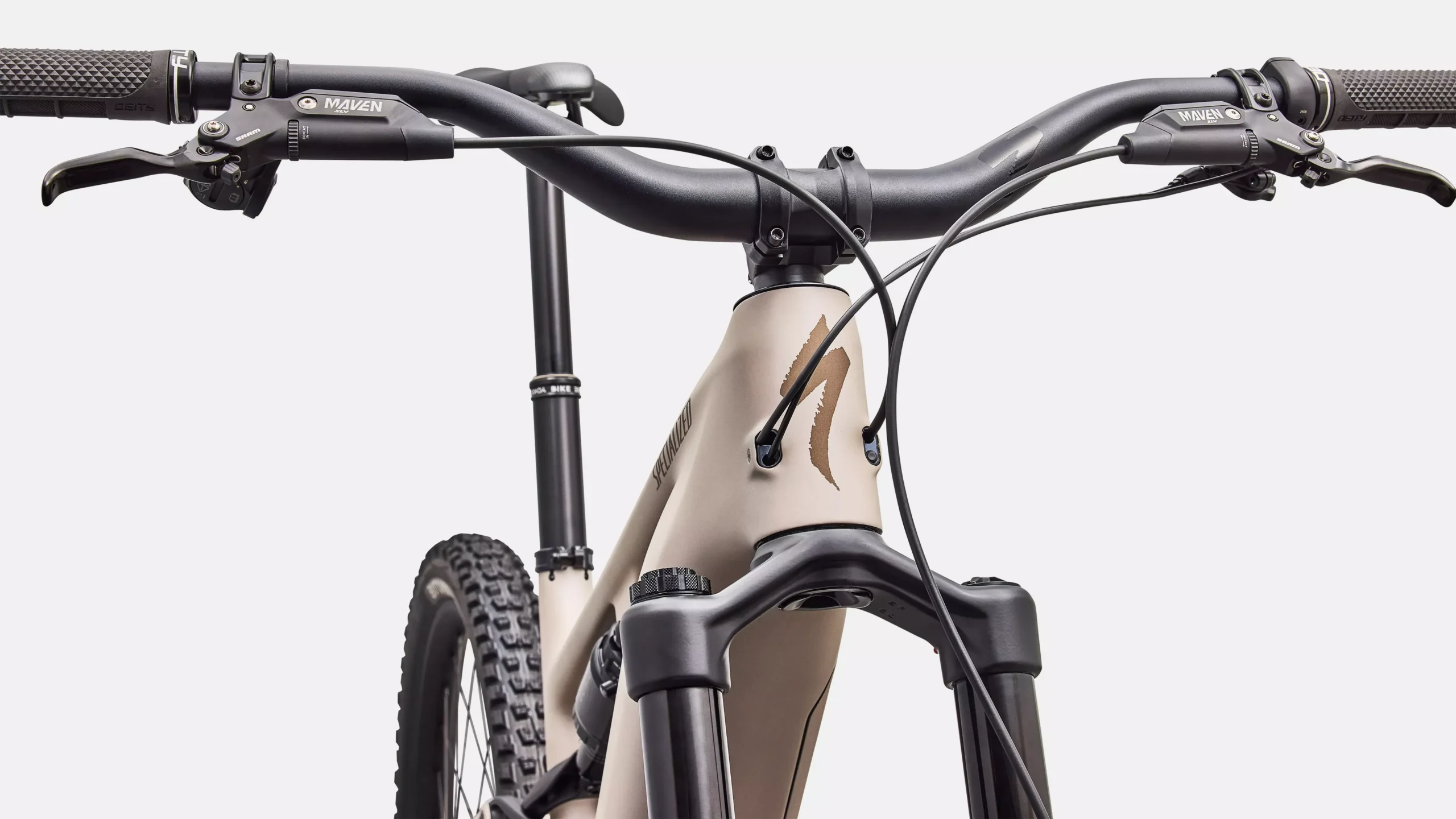

Handlebars – Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise

Grips – Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black

Saddle – Specialized Bridge Comp with Mimic

Seatpost – Bike Yoke, Revive Max 3.0, 34.9, S2: 125mm, S3: 160mm, S4: 185mm, S5-S6: 213mm

Accessories:
SWAT – SWAT Internal downtube storage

Weight:
Weight – 24.72 kg (54 lb, 8.0 oz)

Weight Size – S4

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
