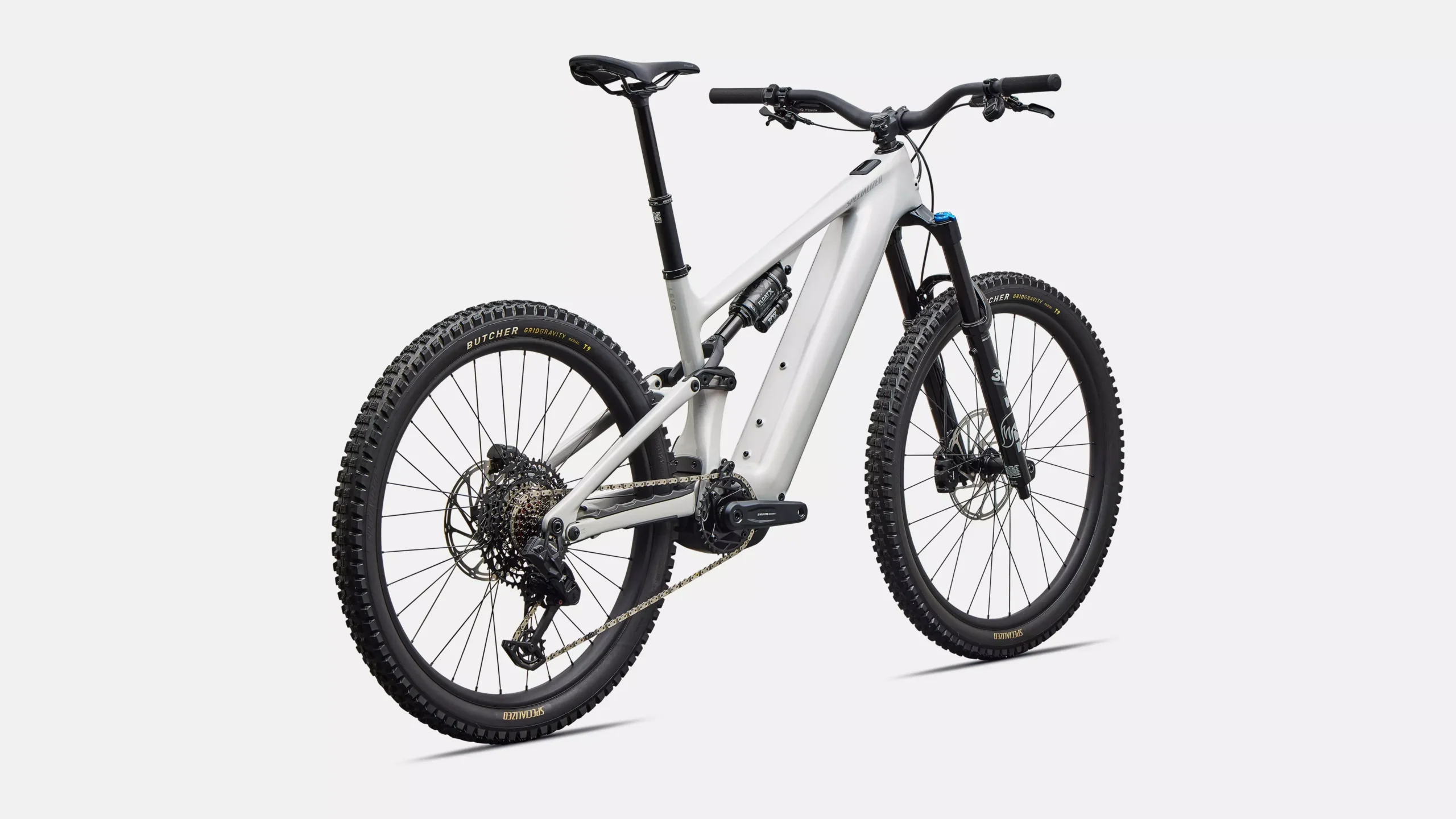

Turbo Levo 4, Where Super Meets Natural
SuperNatural Power, Ride, and Range

The Specialized Science Club Introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you’re SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

• E-System – Specialized 3.1 Motor w/ 810 Watts & 105 Nm, 840 Wh Battery, up to 5 hour range
• Frame – FACT 11m Carbon, Geo Adj & SWAT Storage
• Suspension – Front: 160mm FOX FLOAT 36 Rhythm GRIP
  Rear: 150mm GENIE – FOX FLOAT X Performance
• Drivetrain – SRAM S1000 Eagle T-Type AXS
• Wheels – Specialized Alloy Rims / Bear Pawls hubs

Technical Specifications
E-Bike:

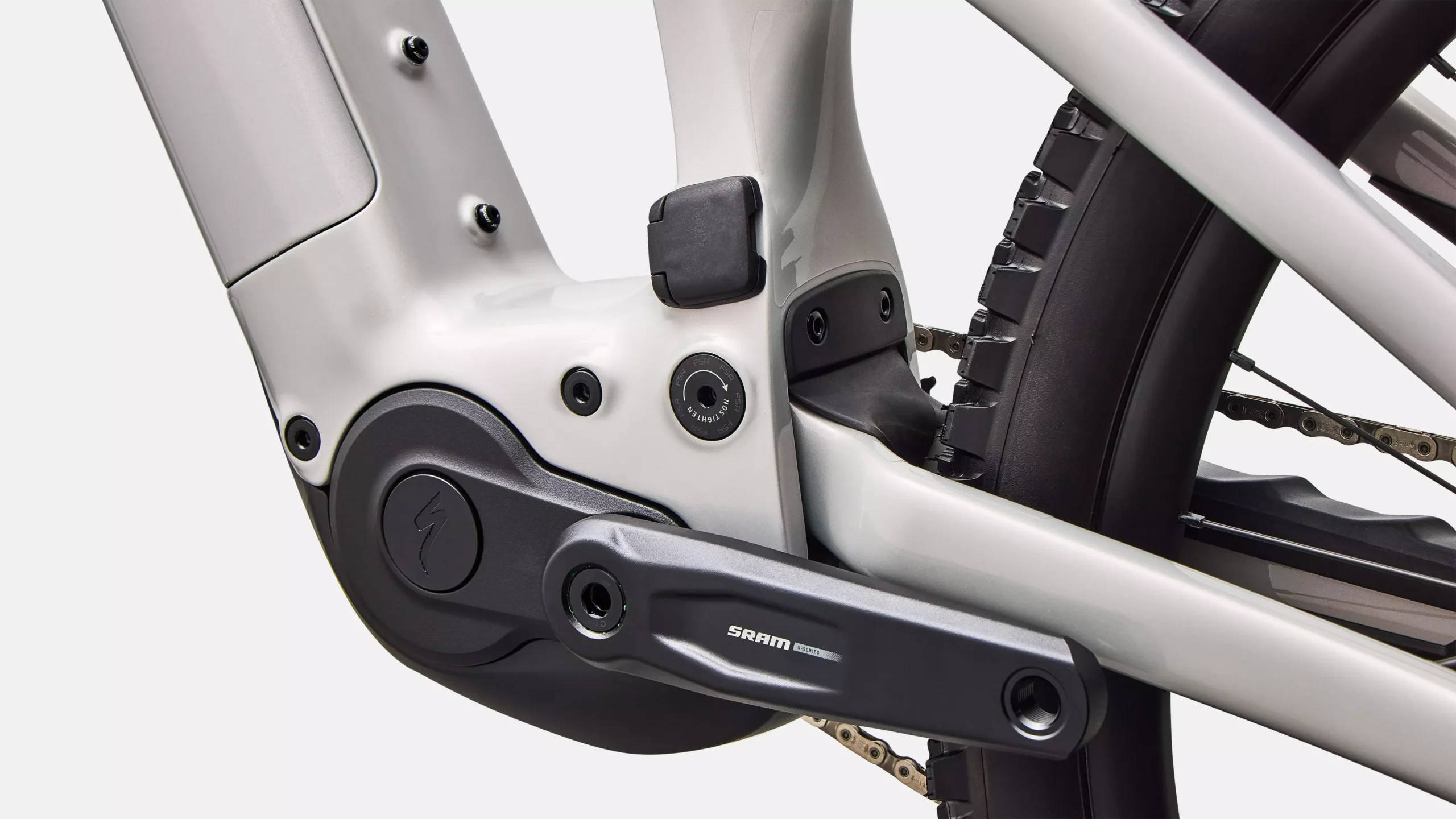

Motor – Specialized 3.1 Motor, 105Nm torque, 810W power

Battery – Specialized Turbo X2 840Wh integrated battery pack

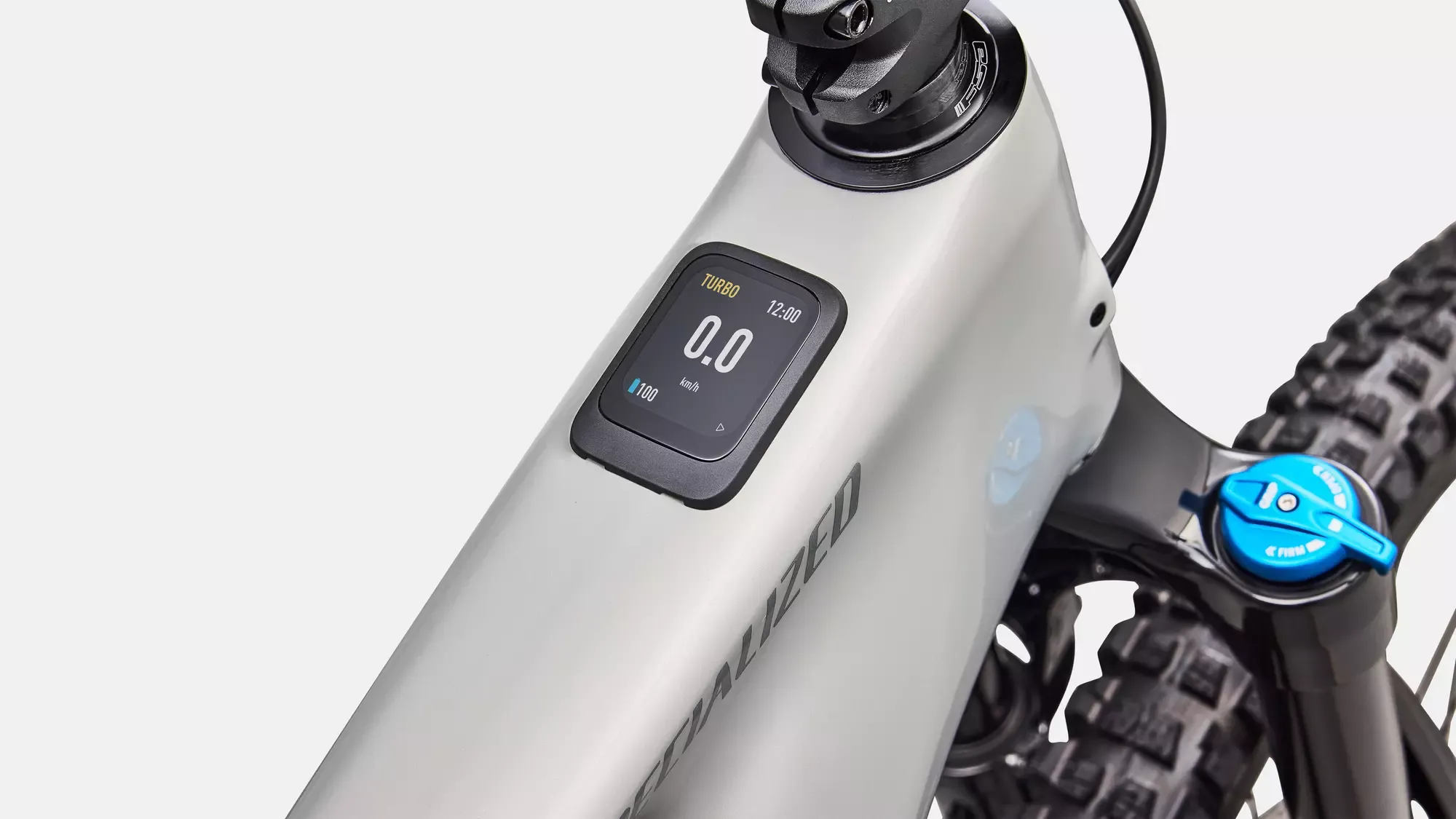

UI/Remote – Mastermind TCU, 2.2″ high resolution screen, fully customizeable with Specialized app, works with Apple Find My

Charger – Specialized 4amp charger

Frameset:
Frame – Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length

Seat Binder – Alloy, 38.6mm

Suspension:

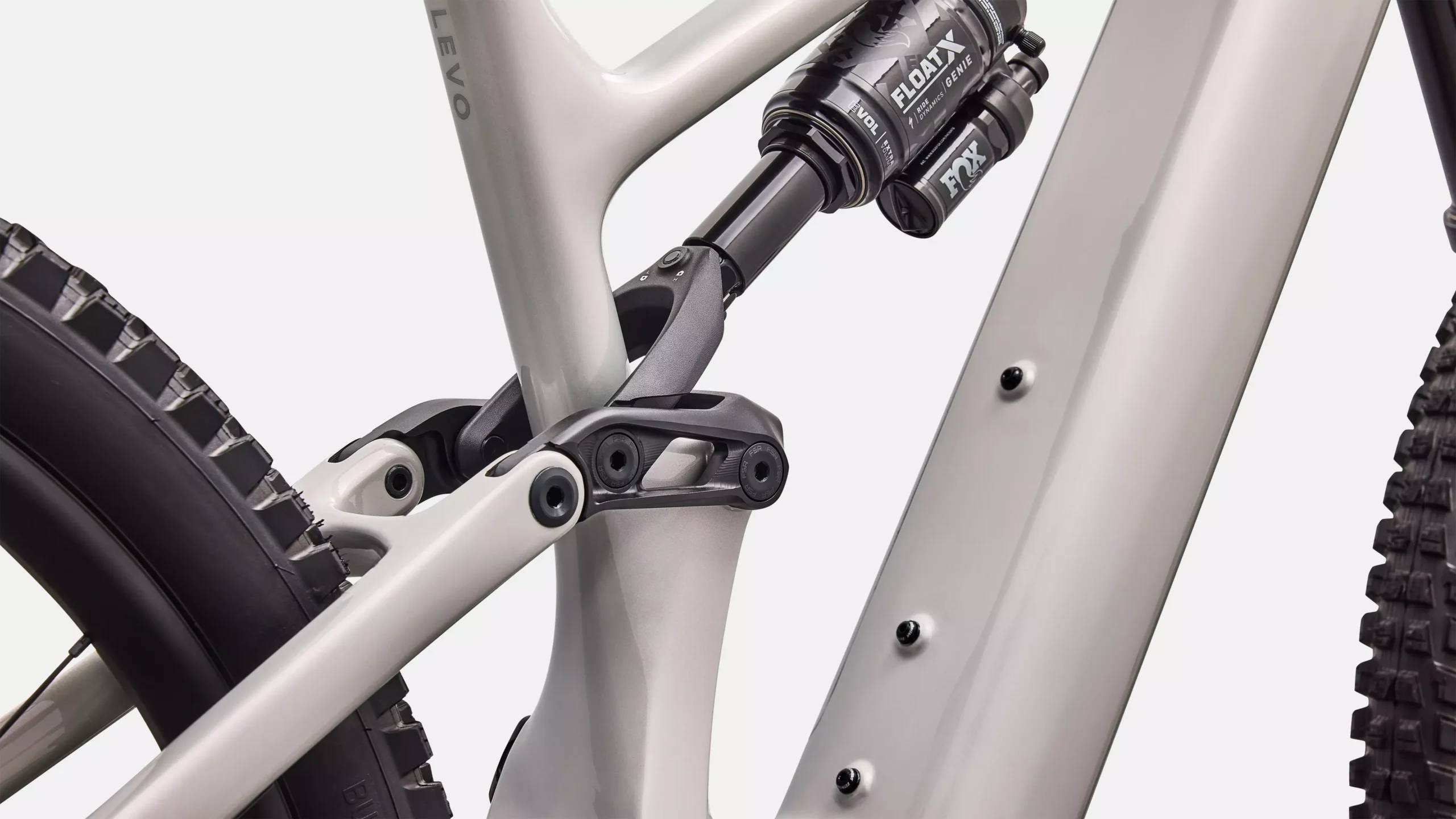

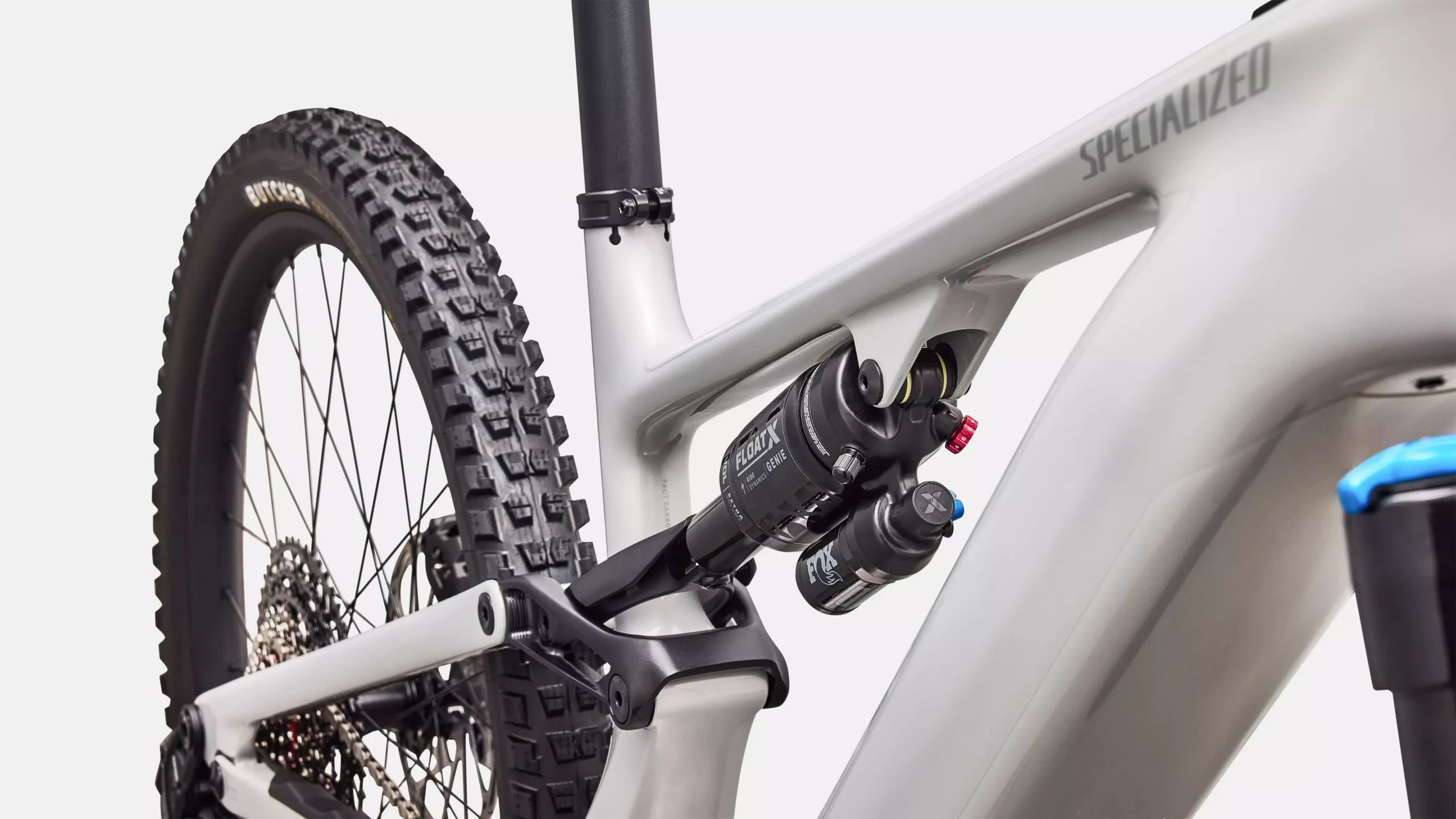

Rear Shock – Fox FLOAT X Genie, Performance series, 210×55, Low speed rebound adjust, climb switch

Fork – FOX FLOAT 36 Rhythm, GRIP damper, two position Sweep adjustment, 15x110mm QR axle, 44mm offset

Brakes:
Front Brake – SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor

Rear Brake – SRAM Maven Bronze, 4-piston caliper, hydraulic disc, 220mm rotor

Drivetrain:
Shift Levers – SRAM AXS Pod Controller w/discrete clamp

Rear Derailleur – SRAM S1000 Eagle AXS

Cassette – SRAM 12-speed,10-52t

Chain – SRAM GX Eagle Transmission 12-Speed Flattop Chain

Crankset – SRAM S1000 Alloy crank, ISIS interface, 155mm length

Chainrings – SRAM 34t T-Type chainring, 104 BCD, steel

Wheels & Tires:
Rims – Specialized, hookless alloy, 30mm inner width, tubeless ready

Front Hub – Sealed cartridge bearings, 6-bolt, 15x110mm thru-axle, 28h

Rear Hub – Specialized alloy rear hub disc, sealed cartridge bearings, 6-Bolt, 12X148mm thru-axle, 32h, HG Steel Fhb

Spokes – DT Swiss Elemental

Front Tire – Butcher GRID Gravity Radial T9 TLR Enduro Tire 29×2.4

Rear Tire – Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5×2.4

Inner Tubes – Standard, Presta Valve

Cockpit:
Stem – Alloy Trail Stem, 35mm bar bore

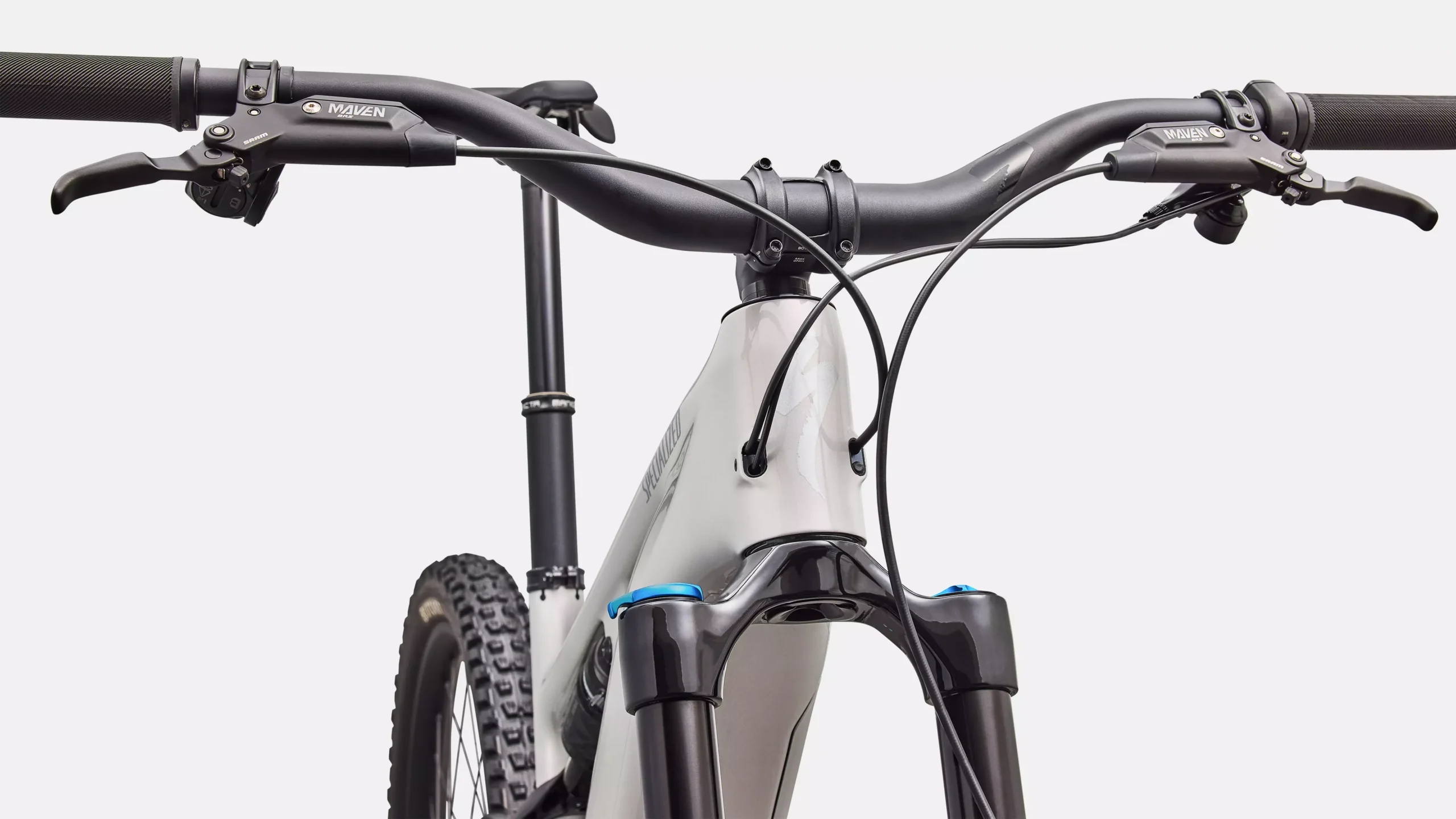

Handlebars – Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S1/S2: 780mm/30mm rise, S3-S6: 800mm/50mm rise

Grips – Specialized Trail Grips

Saddle – Bridge Comp, Hollow Cr-mo rails 155/143

Seatpost – Xfusion Manic, infinite adjustable, two bolt head, Remote SLR LE lever, 34.9, S2: 125mm, S3: 170mm, S4-S6: 190mm

Accessories:
SWAT – SWAT Internal downtube storage

Weight:
Weight – 24.54 kg (54 lb, 1.6 oz)

Weight Size – S4

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
