Where Super Meets Natural

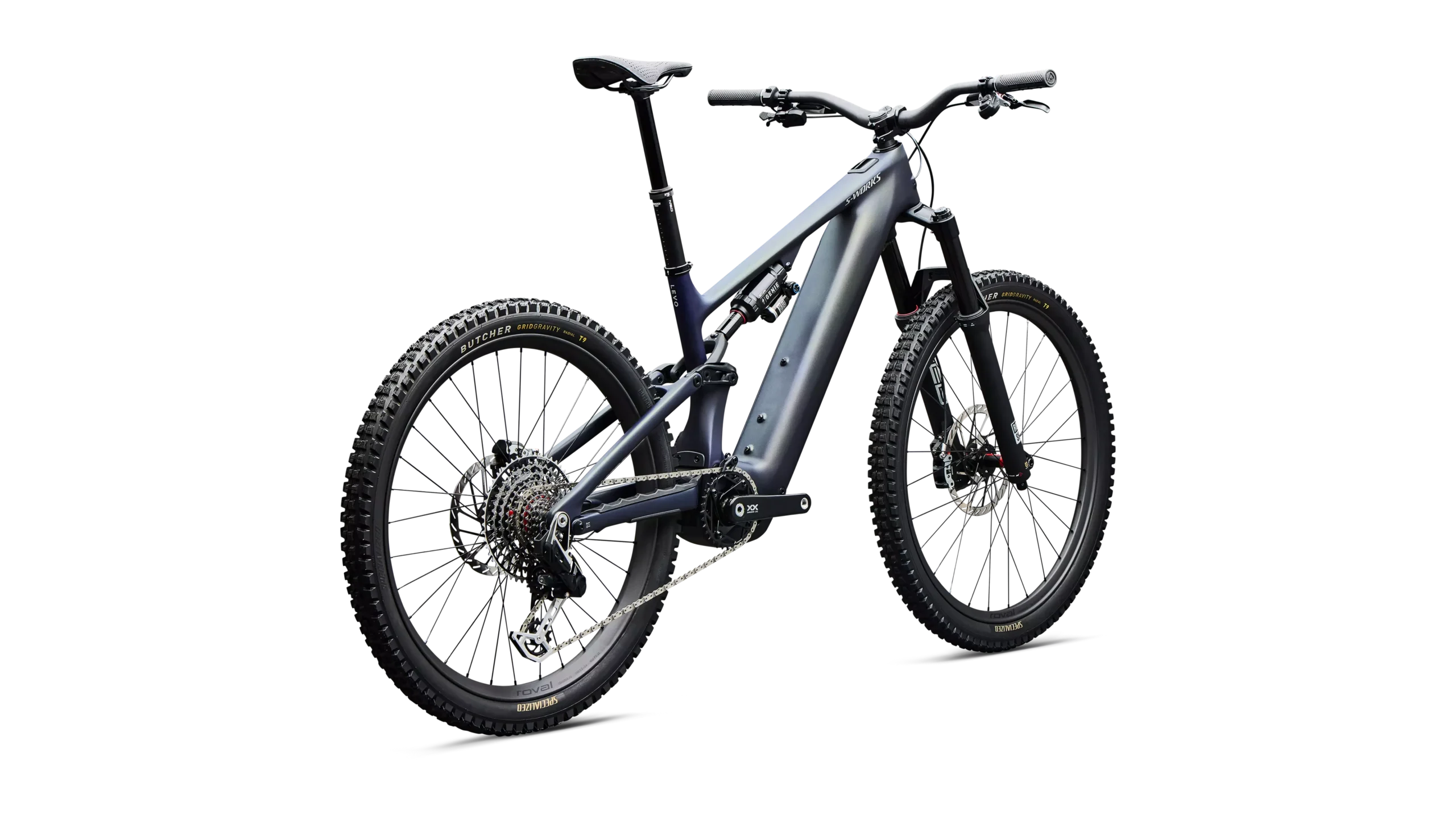

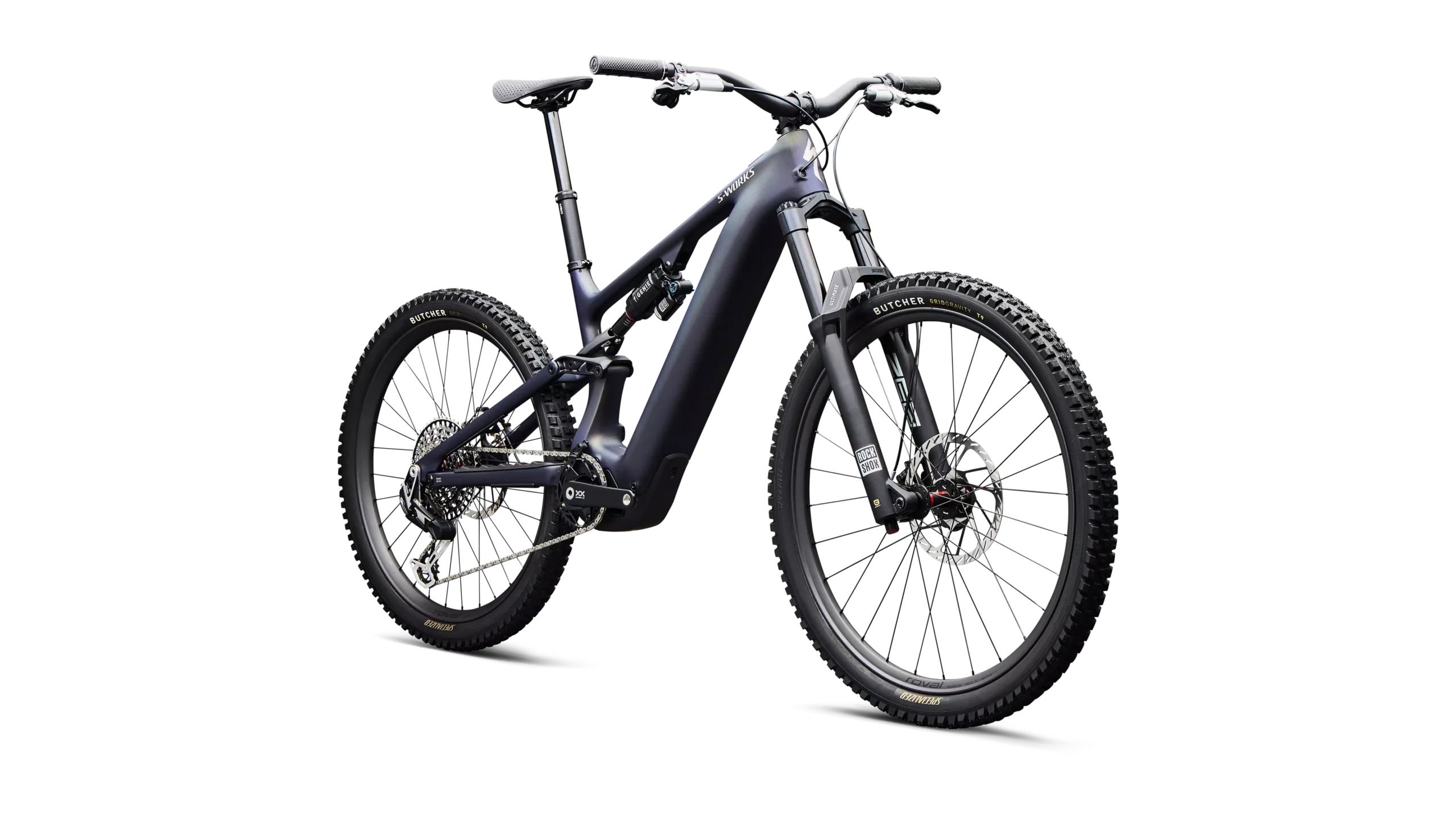

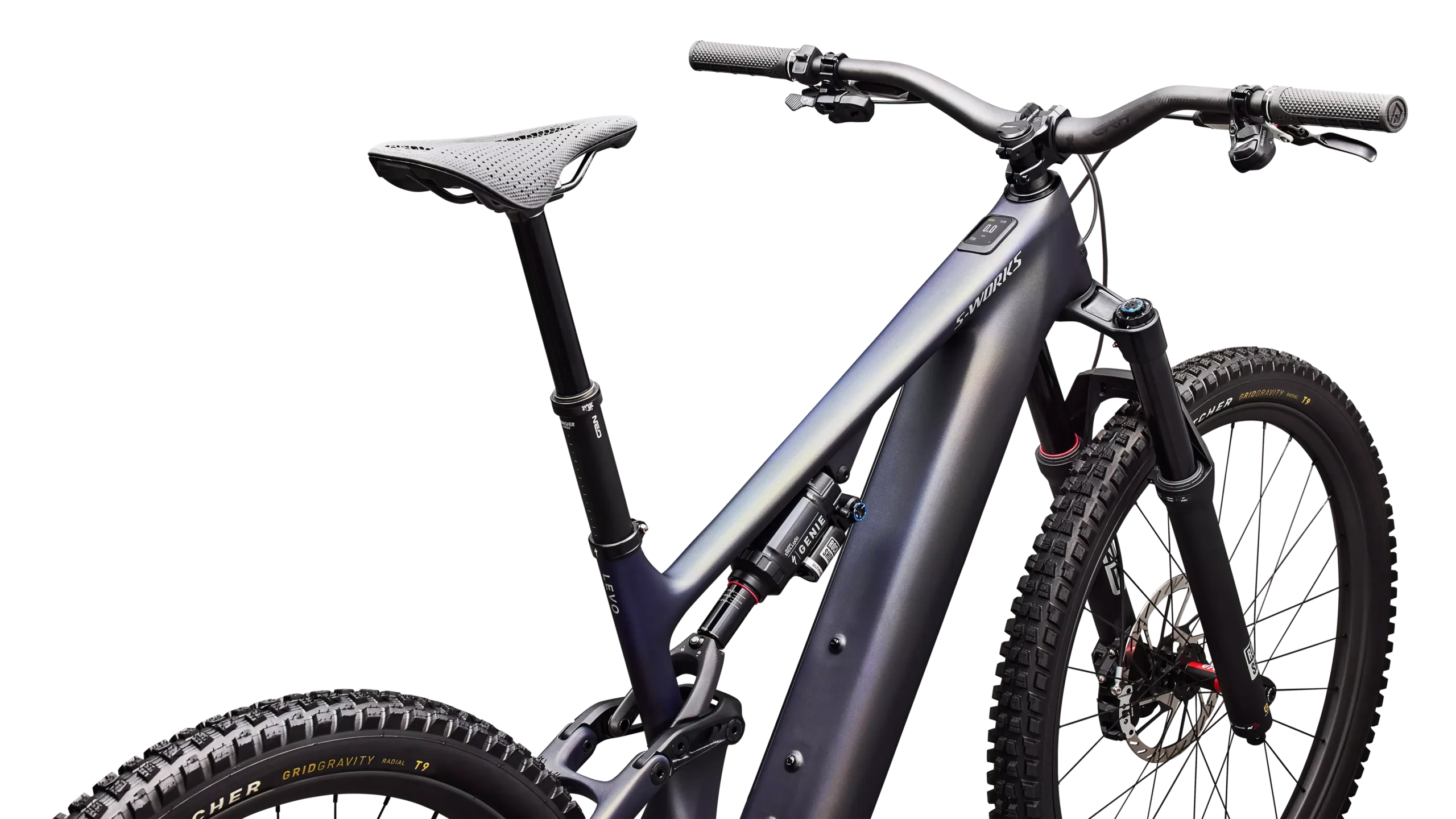

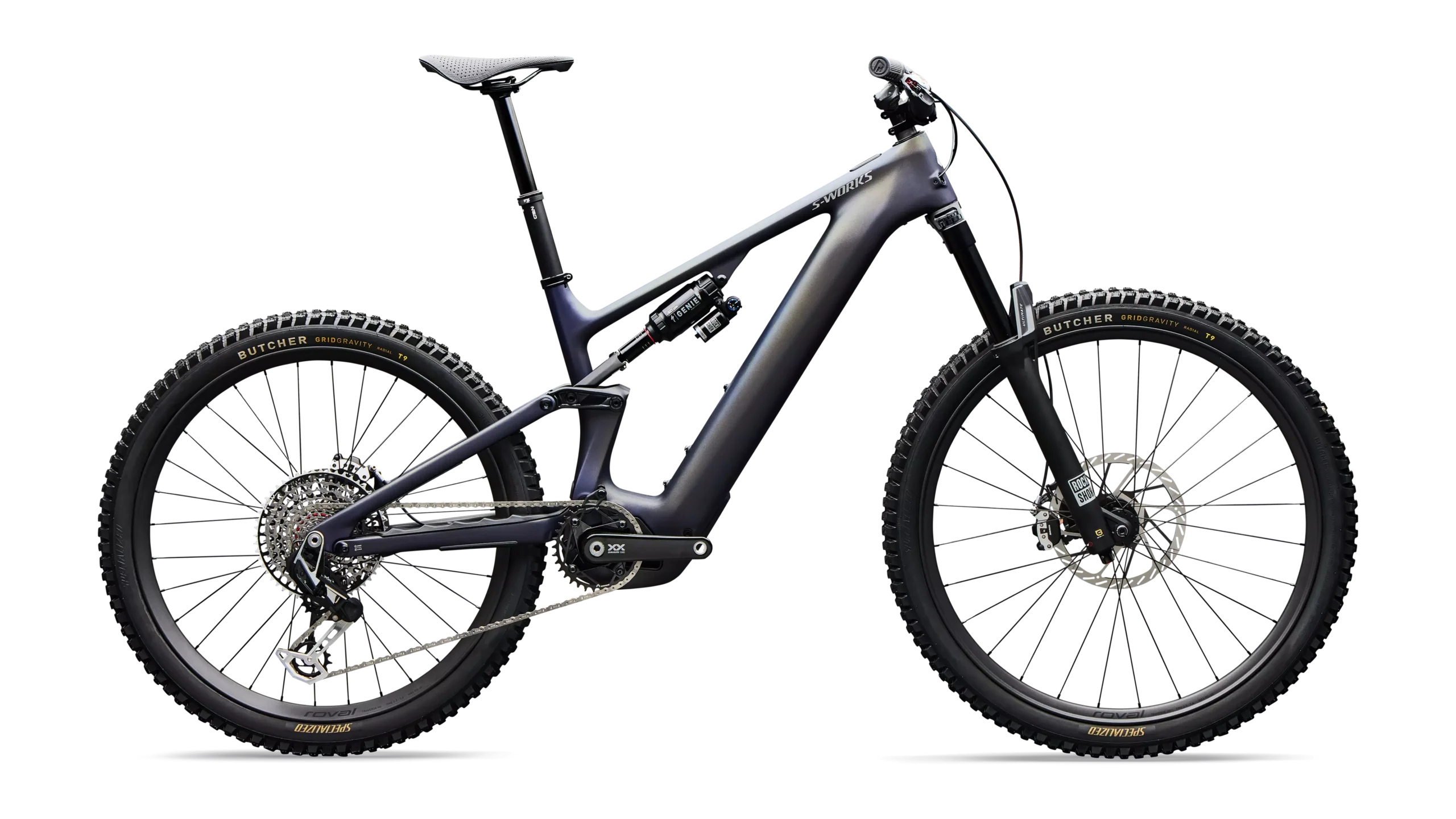

S-Works Turbo Levo 4

The Specialized Science Club Introduces the S-Works Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you’re SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.

• E-System – S-Works 3.1 Motor w/ 850 watts peak power & 111 Nm torque, 900 Wh battery, up to 4.63 hour range w/ optional Range Extender

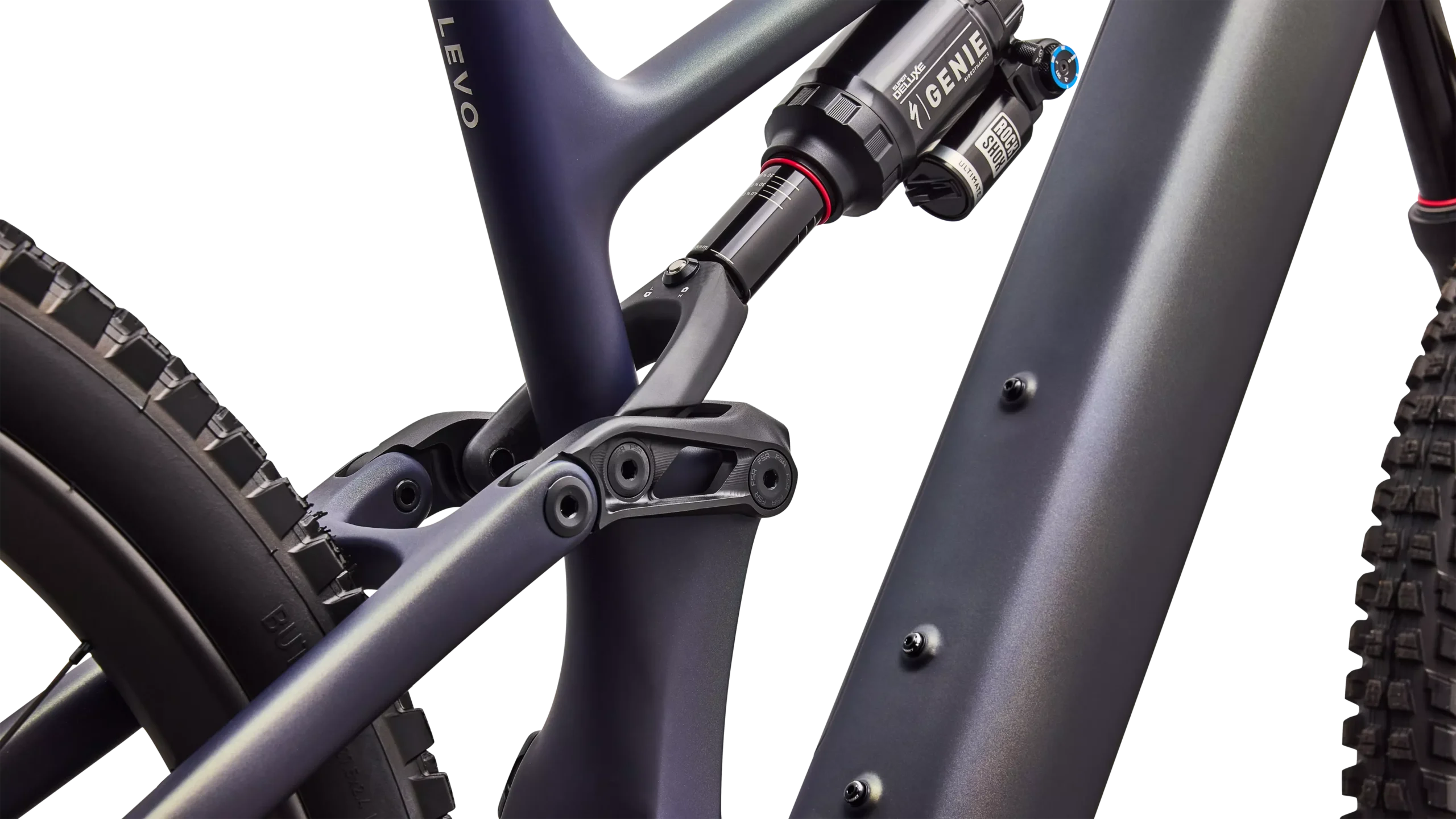

• Frame – FACT 11m Carbon w/ Carbon Link, Geo Adj & SWAT E-MTB Storage
• Suspension – Front: 160mm RockShox ZEB Ultimate fork
  Rear: 150mm RockShox Super Deluxe Ultimate shock w/ GENIE
• Drivetrain – SRAM XX Eagle AXS Transmission
• Wheels – Roval Traverse HD carbon wheels w/ Butcher Grid Gravity Radial 2.4″ tires

Technical Specifications

E-Bike:

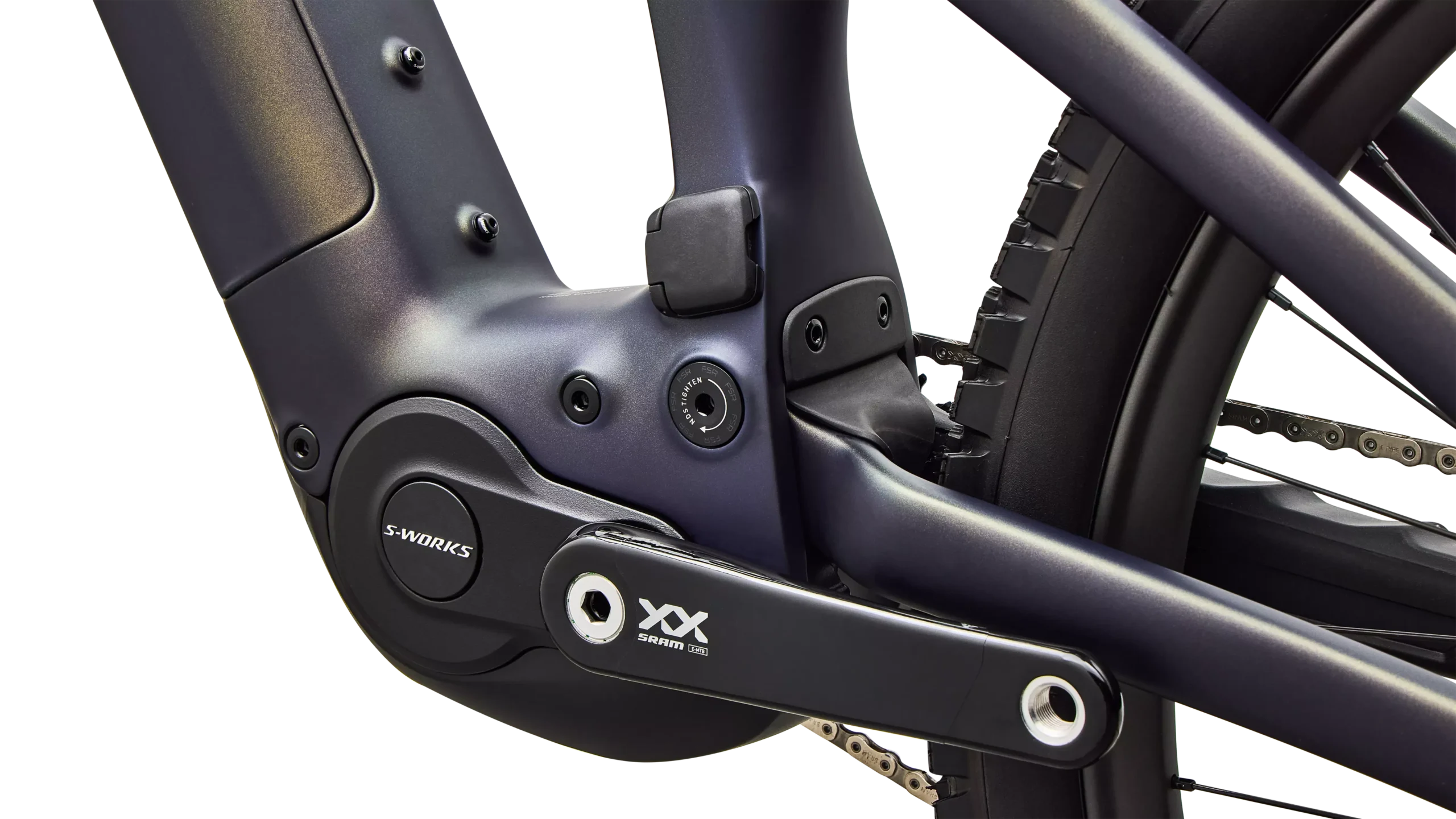

Motor – Specialized 3.1 S-Works motor, 111Nm power, 850W power

Battery – 900Wh Battery

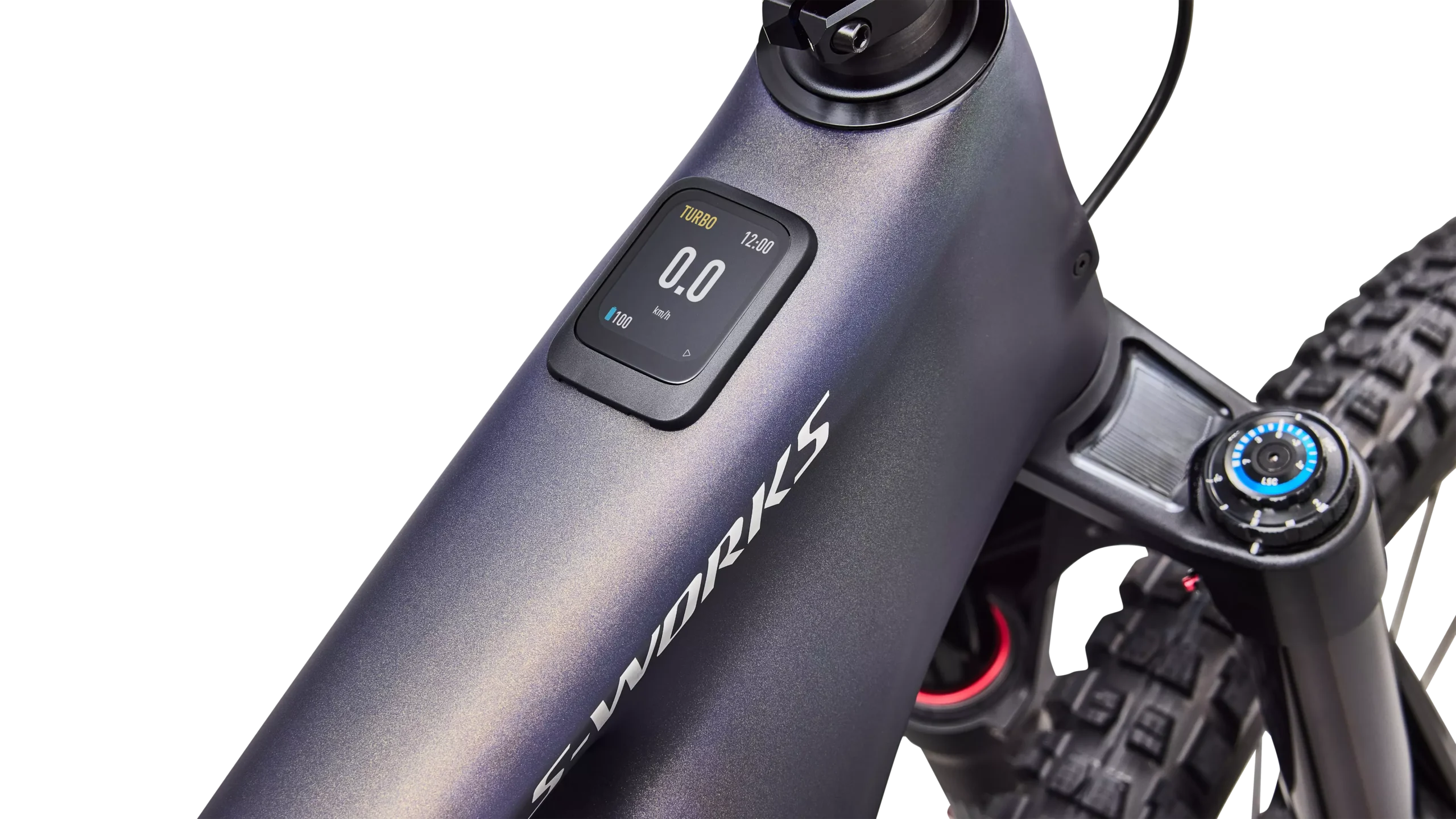

UI/Remote – Mastermind TCU, 2.2″ high resolution screen, fully customizeable with Specialized app, works with Apple Find My

Charger – Specialized 12amp smart charger, 4 different charge functions including Standard, Fast, Eco, and charge to 80%

Frameset:
Frame – Levo 4 carbon frame, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm, adjustable head angle, BB height, chainstay length

Seat Binder – Alloy, 38.6mm

Suspension:

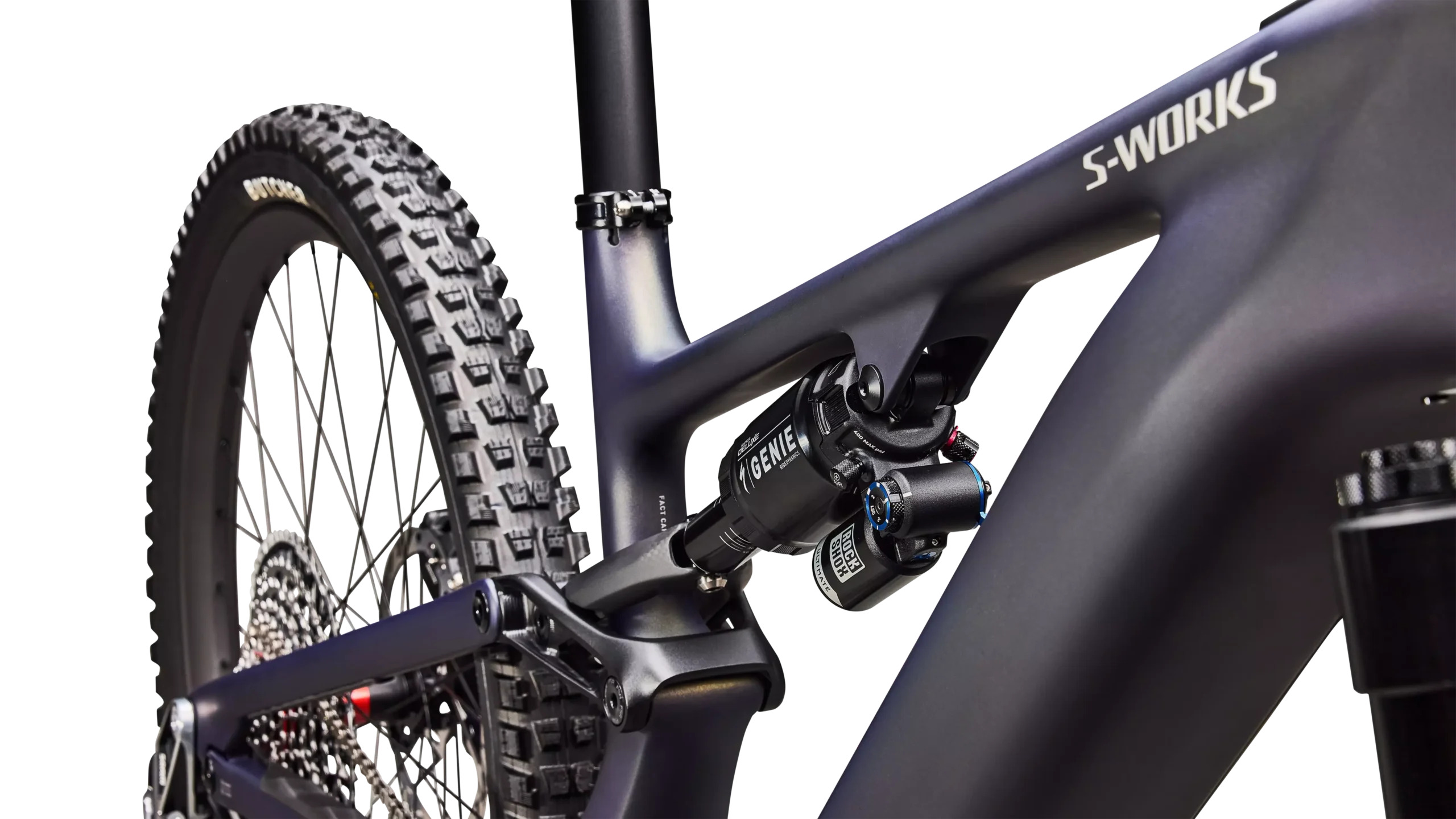

Rear Shock – All New Rockshox Super Deluxe Ultimate GENIE, RC2T damper with (LSC) Low Speed Compression and (HSC) High Speed Compression, GENIE adjustable airspring, rebound adjust, 210x55mm

Fork – All New SRAM FS ZEB Ultimate, 29″ 160mm, Linear XL spring with ButterCups and adjustable bottom out, new Charger 3.2 damper with HSC and LSC, rebound adjust

Brakes:
Front Brake – SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 220mm HS2 Rotor

Rear Brake – SRAM Maven Ultimate, 4-piston caliper, hydraulic disc, 200mm HS2 Rotor

Drivetrain:
Shift Levers – SRAM AXS Pod Ultimate with Discrete Clamp

Rear Derailleur – SRAM XX Eagle Transmission Derailleur

Cassette – SRAM XX Transmission, XS 1297, 10-52t

Chain – SRAM XX, T-Type

Crankset – SRAM XX Carbon crank, 160mm, ISIS interface

Chainrings – SRAM 34t T-Type chainring, 104 BCD, steel

Wheels & Tires:
Front Tire – Butcher GRID Gravity Radial T9 TLR Enduro Tire 29×2.4

Front Wheel – Roval Traverse HD 29″, hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 Hub, 12x148mm, 28h

Rear Tire – Butcher GRID Gravity Radial T9 TLR Enduro Tire 27.5×2.4

Rear Wheel – Roval Traverse HD carbon 27.5″, hookless carbon, 30mm inner width, tubeless ready, DT Swiss 240 DEG Hub, 12x148mm, 32h

Inner Tubes – Standard, Presta Valve

Cockpit:
Stem – RaceFace, 35mm clamp, 40mm length

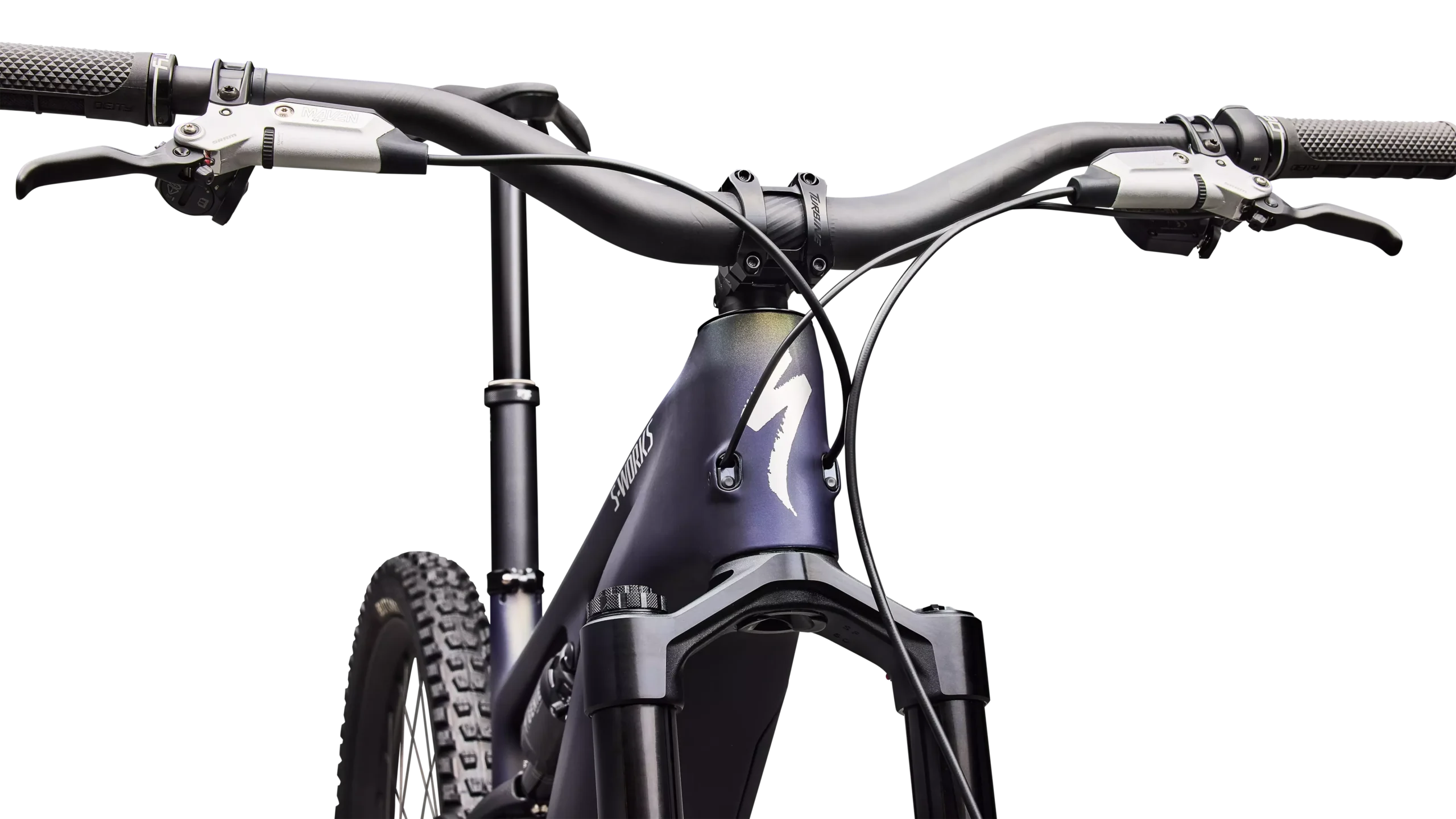

Handlebars – RaceFace Era Carbon Handlebars, 35mm clamp, back-sweep 8-degrees, up-sweep 5 degrees, 800mm width, S1/S2: 40mm rise, S3-S6: 55mm rise

Grips – Deity Lockjaw, Lock On, 32mm OD, 133mm Length, Black

Saddle – Specialized Power Pro Mirror w/hollow Ti rails, 143mm/155mm

Seatpost – FOX Transfer Neo E-Optimized, 34.9, S2: 150mm, S3: 175mm, S4: 200mm, S5: 225mm, S6: 240mm w/ 1320mm cable powered by e-system battery

Accessories:
SWAT – SWAT Internal downtube storage

Weight:
Weight – 24.0 kg (52 lb, 14.6 oz)

Weight Size – S4

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
