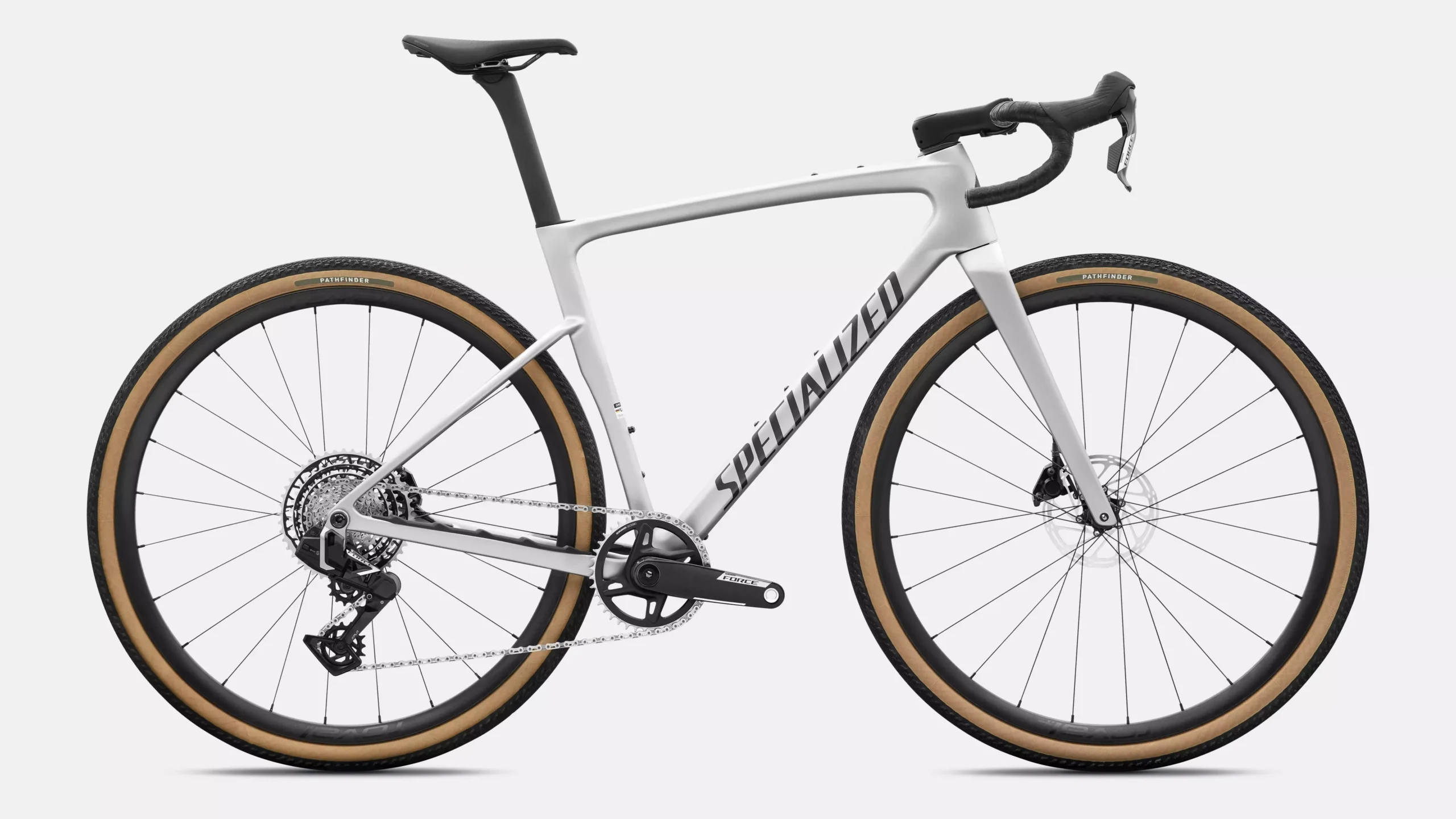

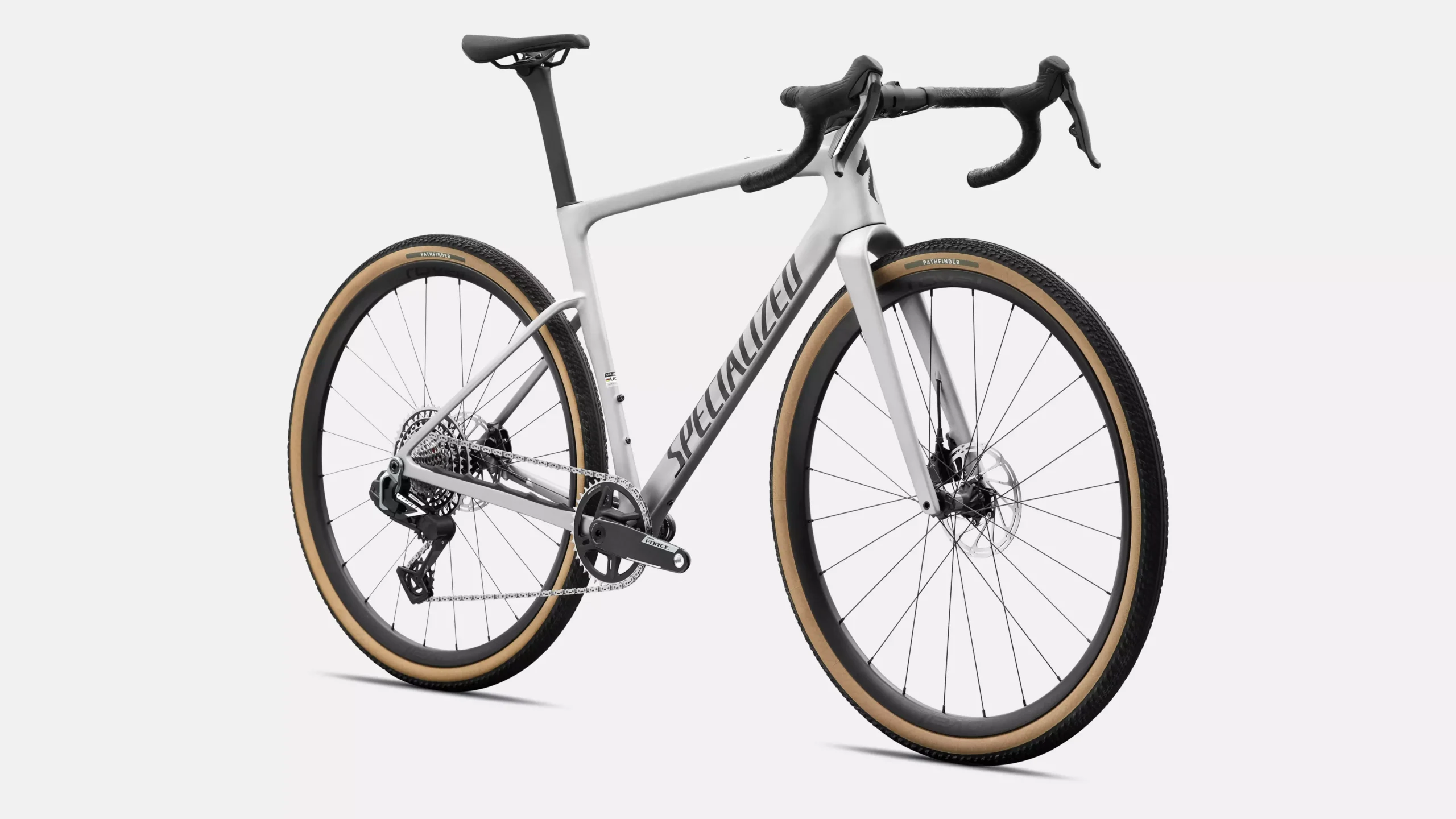

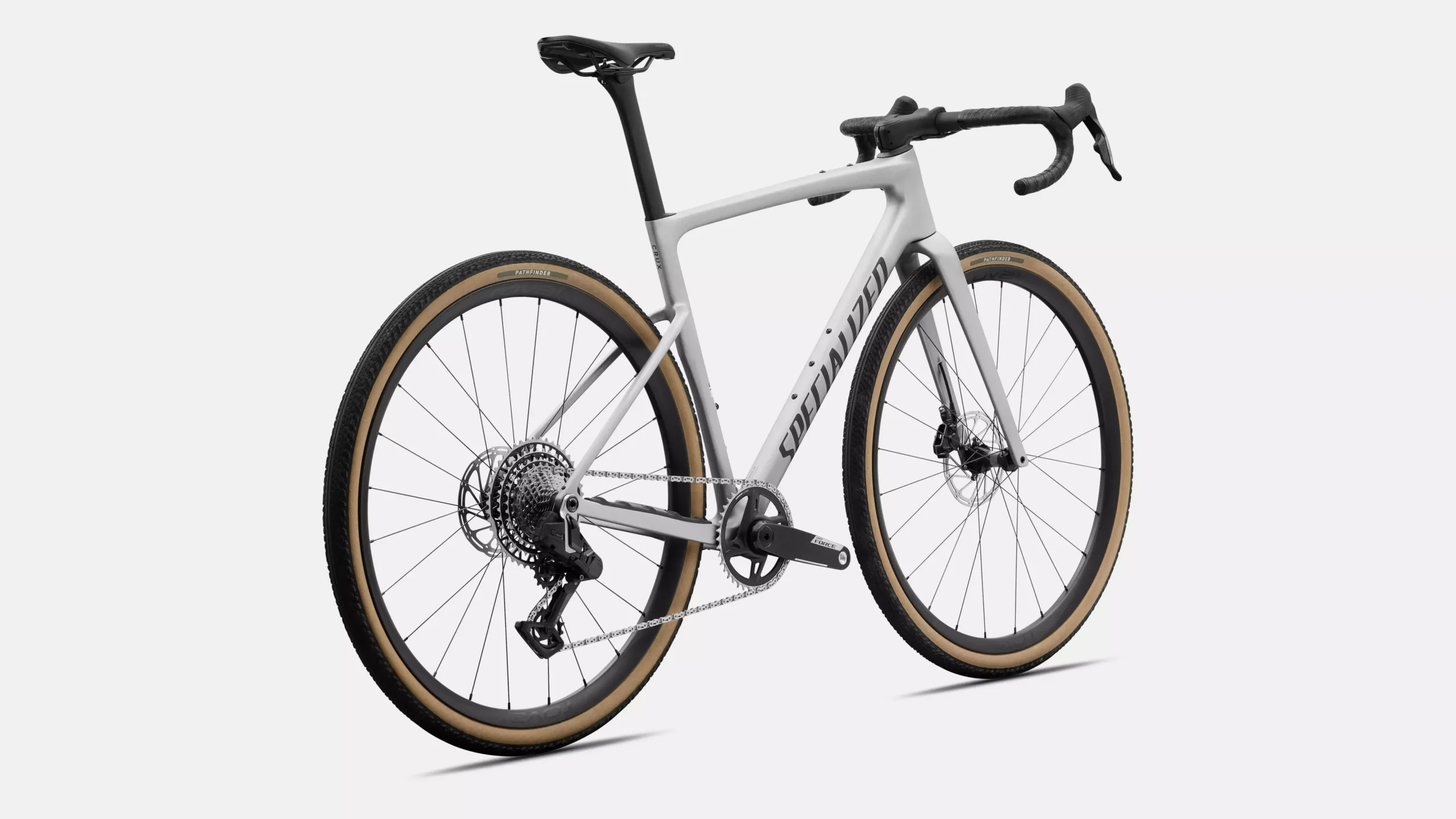

Crux 5 Expert
Eat My Dust

The Crux 5 was born from the fastest gravel race bike ever made. Not just because it’s the lightest. Not just because it’s our most aero. Not just because it handles dirt like a Tarmac handles pavement. But because it delivers the lowest real-world Time to Finish of any gravel bike ever made. Crux 5 turns more of your effort into pure speed—validated across real race courses, real terrain, and real riders. When the goal is the top step, nothing in gravel gets you there faster.

• Frame – FACT 10r Carbon: 897 grams
• Wheels – Roval Terra C III

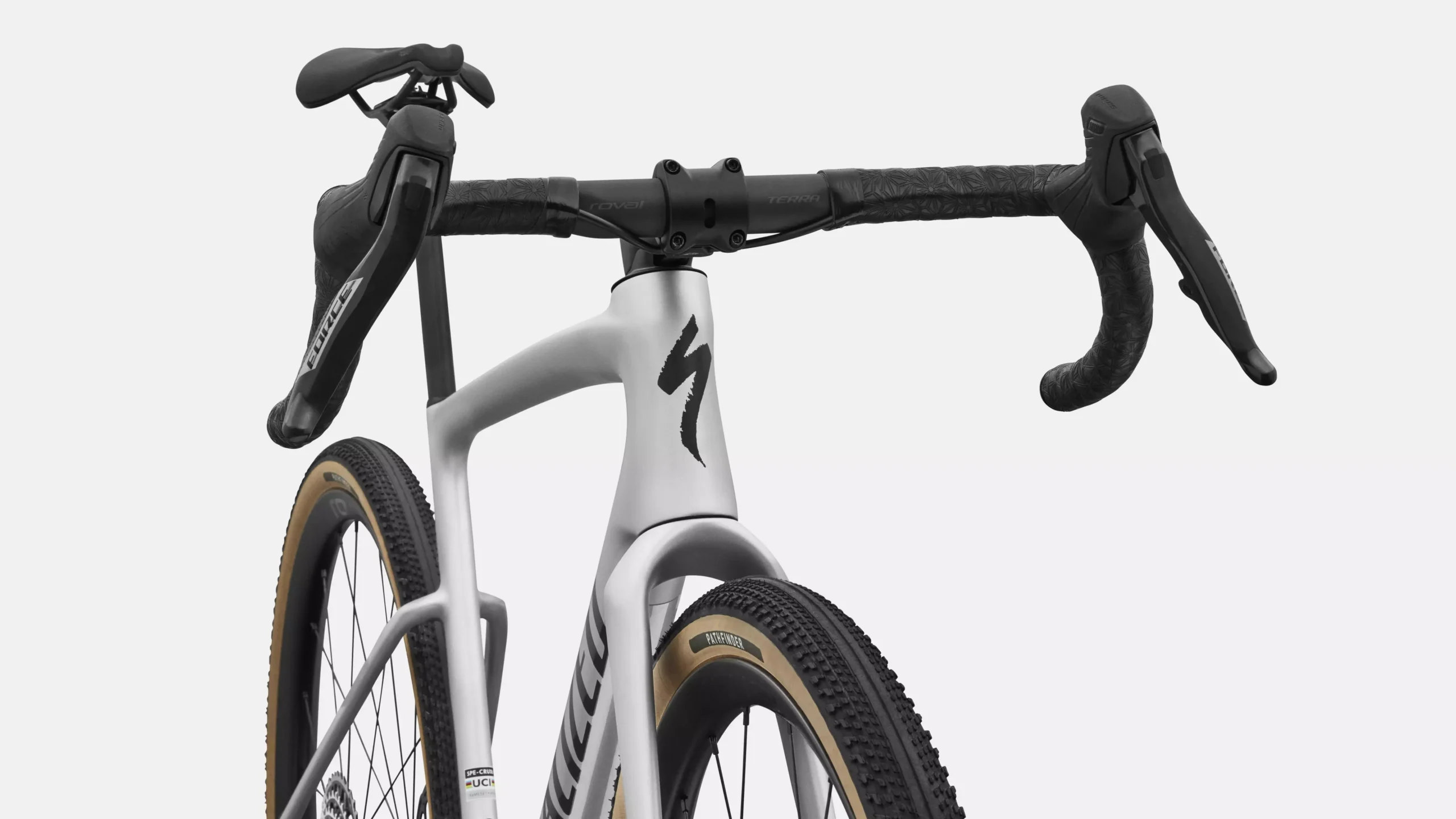

• Bar and Stem – Roval Terra Handlebar and Rapide Stem
• Drivetrain – SRAM Force AXS XPLR
• Weight – 8.22 kg

Technical Specifications

Frame: Crux 5 FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc, UDH dropout

Fork: S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc

Front Brake: SRAM Force E1, hydraulic disc

Rear Brake: SRAM Force E1, hydraulic disc

Shift Levers: SRAM Force AXS E1, hydraulic disc

Rear Derailleur: SRAM Force AXS E1 XPLR, 13-speed

Cassette: SRAM Force E1 XPLR, 13-speed, 10-46t

Chain: SRAM Force Flattop E1

Crankset: SRAM Force E1 XPLR, DUB Wide, 40t

Bottom Bracket: SRAM DUB BSA 68 Wide

Front Tire: Pathfinder 700×45, Tubeless Ready

Front Wheel: Roval Terra C III, 27mm inner width carbon rim, tubeless ready, 25.5mm depth, DT 370 hub, 24h, Sapim D-Light spokes

Rear Tire: Pathfinder 700×45, Tubeless Ready

Rear Wheel: Roval Terra C III, 27mm inner width carbon rim, tubeless ready, 25.5mm depth, DT 370 hub, 24h, Sapim D-Light spokes

Inner Tubes: 700×32-50mm, 40mm Presta valve

Stem: Roval Rapide, alloy, 4 bolt, -6 degrees

Handlebars: Roval Terra, carbon, 103mm drop x 70mm reach x 12º flare

Tape: Supacaz Super Sticky Kush

Saddle: Body Geometry Power Expert, hollow Ti rails

Seatpost: S-Works Tarmac SL8 Carbon seat post, FACT Carbon, 15mm offset

Weight: 8.22 kg (18 lb, 2.0 oz)

Weight Size: 56

* Weights based on production painted frames as pictured. Actual weights will vary based on colourway, frame size, and component variation. Specifications are subject to change without notice.
